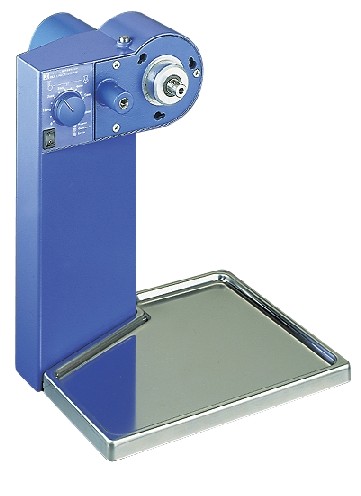

MF 10 basic Microfine grinder drive 115V

MF 10 basic Microfine grinder drive 115V

IKA 2836001



Continuously operating universal grinder.
- Powerful drive
- Easy to clean working surface made of stainless steel
- Two different grinding heads can be attached to the drive
- Heads are easily changeable
- Grinding heads not incl. with delivery

Process type	inline
Operating principle	cutting/impact
Motor rating input	1000 W
Motor rating output	500 W
Speed range	3000 - 6500 1/min
Power-on time ON	120 min
Power-om time OFF	30 min
Milling chamber, can be cooled with water	no
Mill feed can be cooled in milling chamber with dry ice	yes
Mill feed can be cooled in milling chamber with liquid nitrogen	no
Dimensions (W x H x D)	320 x 380 x 300 mm
Weight	9.7 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 22
RS 232 interface	no
Analog output	no
Voltage	115 V
Frequency	50/60 Hz
Power input	1000 W
