Multi-position magnetic stirrer RO 15 power IKAMAG 115V IKA 2930601

Clarkson 2030601

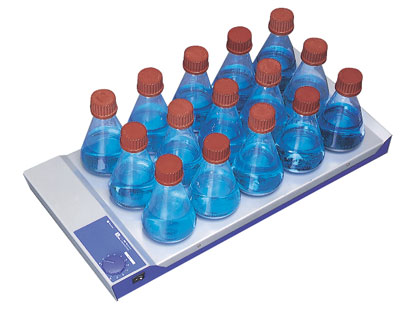

Multi-position magnetic stirrer RO 15 power IKAMAG® 115V

IKA 2930601



Description:

Multi-position magnetic stirrer with 15 stirring positions, without heating. The stainless steel surface covers the unit allowing easy cleaning and providing protection against the penetration of liquids.
- Optimum use of laboratory space
- Including removable PUR cover

Specifications:

Number of stirring positions	15
Stirring quantity max. per stirring position (H2O)	0.4 l
Stirring position distance	90 mm
Speed deviation of individual stirring positions	5 %
Stirring quantity max. (H2O)	6 l
Motor rating input	21.6 W
Motor rating output	5.4 W
Speed range	0 - 1100 1/min
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	270 x 450 mm
Dimensions (W x H x D)	272 x 65 x 552 mm
Weight	4.7 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 42
Voltage	230 / 115 V
Frequency	50/60 Hz
Power input	30 W

Downloads:

Data Sheet
Manual
Spare parts list
