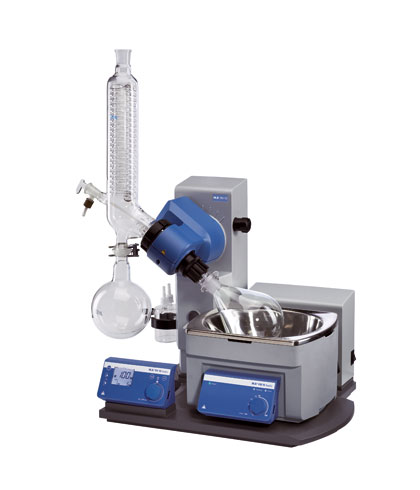

Rotary Evaporator RV 10 Basic V 115V IKA 8023901

Rotary Evaporator RV 10 Basic V 115V

IKA 8023901



The newly developed product line from IKA® in ergonomic, compact design with innovative functions to improve operating results.

Rotary evaporators with integrated heating bath HB 10 basic inc. space saving vertical glassware (1 litre).

- Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
- Safe and simple operation through ergonomically shaped operator unit in the front area
- Motorised lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of

the heating bath.
- Adjustable end position recognition to protect the glass from breaking
- Speed range from 20 to 270 rpm
- Smooth start from 100 rpm
- Digital speed display
- Moves right and left in interval operation for the drying process
- Timer function for time lapse controls
- Water-oil heating bath with integrated carry handles with safe handling
- Heats up quickly because of optimised bath volumes
- Cooling surface 1,200 cm²
- Push-off mechanism to loosen tightly fitting pistons
- Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)



Specifications:

Type of cooling	vertical
Cooling surface	1200 cm2
Motor principle	DC
Speed range	20 - 270 1/min
Lift	Motor
Stroke	140 mm
Heating temperature range	room temp. - 180 °C
Heat output	1300 W
Heat control accuracy	5 ±K
Bath volume max.	3 l
Vacuum controller integrated	no
Dimensions (W x H x D)	500 x 430 x 410 mm
Weight	19.6 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 20
RS 232 interface	no
Analog output	no
Voltage	220 - 240 / 100 - 120 V
Frequency	50/60 Hz
Power input	1400 W
