Calorimeter C2000 Basic Version 1 115V IKA 8801801
List Price: $20,839.00
Clarkson Price: $19,797.05
You Save: $1,041.95 (5 %)
Clarkson Catalog Number: 8801801
Manufacturer: IKA
Manufacturer Catalog Number: 8801801
|
|
Clarkson 8801801
Calorimeter C2000 Basic Version 1 115V
IKA 8801801
Description:

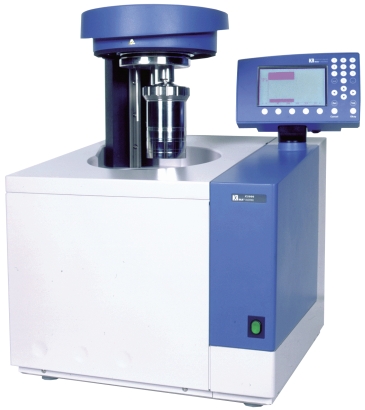

The C 2000 basic IKA- calorimeter is a combustion calorimeter for determining gross calorific values of liquid and solid samples. A high level of automation with extremely simple handling characterizes this instrument. In addition to the isoperibolic measurement procedure (static jacket), a dynamic (reduced-time) working method is also available. To provide the calorimeter with cooling water, it needs to be connected to a thermostat f.e. IKA KV 600 ( accessory) or a firmly installed water connection. The C 2000 basic is equipped with a very convenient console to operate the unit.
- Automatic water handling system includes tempering, filling and emptying of calorimeter inner vessel
- Automatic oxygen filling of decomposition vessel
- Automatic decomposition vessel identification
- Automatic sample ignition
- Validation according to DIN 51900,ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711
- Working methods:
isoperibol, measurement time: approx. 22 min
dynamic, measurement time: approx. 7 min
- Compact, integrated modular design for convenient operation
- Cooling water supply via thermostat f.e. IKA KV 600 (accessory) or firmly installed water connection (C 25 pressure regulating valve recommended)
- Interface connections for each of the following: scale, printer, monitor and sample rack C 5020
- User-friendly software C 5040 CalWin for controling the calorimeter and administration of measuring data
- Up to eight measurement cells can be controlled by a single PC, using a multi-serial plug-in card PCI 8.2 (accessory)
- LIMS integration is possible
- Special halogen resistent vessel for quantitative decomposition of halogens and sulfur
- The decomposition vessel can be changed over to use combustible crucibles C 14 ( accessory C5010.4 is needed)
-Consumables for calibrations and initial operation are included with delivery.
Specifications:
|
Measuring range max.
|
40000 J
|
|
Measuring mode adiabatic 22°C
|
no
|
|
Measuring mode isoperibol 22°C
|
no
|
|
Measuring mode dynamic 25°C
|
yes
|
|
Measuring mode isoperibol 25°C
|
yes
|
|
Measuring mode dynamic 30°C
|
yes
|
|
Measuring mode isoperibol 30°C
|
yes
|
|
Measuring mode double dry (ISO 1928)
|
no
|
|
Measuring time dynamic approx.
|
7 min
|
|
Measuring time isoperibol approx.
|
22 min
|
|
Reproducibility dynamic (1g benzoic acid NBS39i)
|
0.1 %RSD
|
|
Reproducibility isoperibol (1g benzoic acid NBS39i)
|
0.05 %RSD
|
|
Working temperature max.
|
30 °C
|
|
Temperature measurement resolution
|
0.0001 K
|
|
Cooling medium temperature min.
|
12 °C
|
|
Cooling medium temperature max.
|
28 °C
|
|
Cooling medium permissible operating pressure
|
1.5 bar
|
|
Cooling medium
|
tap water
|
|
Type of cooling
|
flow
|
|
Flow rate min.
|
0.3 l/h
|
|
Flow rate max.
|
70 l/h
|
|
Oxygen operating pressure max.
|
40 bar
|
|
Interface scale
|
RS232
|
|
Interface printer
|
Centronix
|
|
Interface PC
|
RS232
|
|
Interface test rack
|
yes
|
|
Interface ext. monitor
|
yes
|
|
Interface ext. keyboard
|
yes
|
|
Oxygen filling
|
yes
|
|
Degasification
|
no
|
|
Decomposition detection
|
yes
|
|
Decomposition vessel C 5010
|
no
|
|
Decomposition vessel C 5012
|
yes
|
|
Decomposition vessel C 7010
|
no
|
|
Decomposition vessel C 7012
|
no
|
|
Decomposition vessel C 62
|
no
|
|
Analysis according to DIN 51900 (1977/84)
|
yes
|
|
Analysis according to ASTM D240 (2002)
|
yes
|
|
Analysis according to ASTM D4809 (2000)
|
yes
|
|
Analysis according to ASTM D1989 (1992)
|
yes
|
|
Analysis according to ASTM D5468 (2002)
|
yes
|
|
Analysis according to ASTM D5865 (2001)
|
yes
|
|
Analysis according to ASTM E711
|
yes
|
|
Dimensions (W x H x D)
|
440 x 500 x 450 mm
|
|
Weight
|
30 kg
|
|
Permissible ambient temperature
|
20 - 25 °C
|
|
Permissible relative moisture
|
80 %
|
|
Protection class according to DIN EN 60529
|
IP 21
|
|
RS 232 interface
|
yes
|
|
Voltage
|
220 - 240 V
|
|
Frequency
|
50/60 Hz
|
|
Power input
|
1800 W
|
