Calorimeter C200 System 100-240V IKA 8802501

<< Previous in Calorimeters Next in Calorimeters >>
List Price: $18,280.00
Clarkson Price: $16,452.00
You Save: $1,828.00 (10 %)
Clarkson Catalog Number: 8802501
Manufacturer: IKA
Supplier Catalog Number: 0008802501
Manufacturer Direct Shipment
free shipping
IKA 8802501
IKA 8802501IKA C 200 8802501
Clarkson 8802501
Calorimeter C200 System 100-240V
IKA 8802501 / IKA 0008802501 / Cole-Parmer EW-50905-00

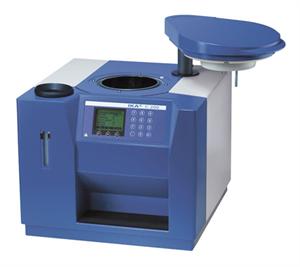

Calorimeter C 200

Compact low cost semi automated calorimeter to determine calorific values of liquid and solid samples. Suitable for educational purposes (e.g. technical schools, universities) and for commercial, industrial laboratories with a low number of samples.
The system can be adapted to individual laboratory tasks by adding further accessories.

The C 200 includes the following components:
  • Basic device (measuring cell) C 200 incl. power pack and ignition adaptor
  • Decompostion vessel C 5010
  • Oxygen station C 248
  • Further consumables for installation and calibration included
Key Features:
  • Space-saving and low cost combustion calorimeter for determing gross calorific values of liquid and solid samples.
  • Four different test procedures isoperibol, dynamic, manual and time-controlled allow ideal adaptation to various tasks
  • Calorific value measurement in accordance with DIN 51900, ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711, GOST 147, GOST 21261
  • Manual oxygen handling and water preparation, automatic ignition and calculation of calorific value (fully automated water filling and draining in a closed loop can be achieved with the accessories RC 2 basic and C 200.RC hose set)
  • Suitable for use with Calwin C 6040 calorimeter software: monitoring and visualisation of measuring procedure (data export and further processing is possible in Excel)
  • Up to eight IKA measuring cells can be controlled by a single PC, using a multiserial plug in card PCI 8.2 (accessory)
  • The decomposition vessel can be equiped in to use an combustible crucibles C 14
    (accessory C 5010.4 attachment is necessary)

 Measuring modes
isoperibol up to 17 min
dynamic up to 8 min
manual (isoperibol) up to 17 min
time-controlled up to 14 min

Specifications:
Measuring range max. 40000 J
Measuring mode dynamic 25°C yes
Measuring mode isoperibol 25°C yes
Measuring time dynamic approx. 8 min
Measuring time isoperibol approx. 17 min
Reproducibility dynamic (1g benzoic acid NBS39i) 0.1 %RSD
Reproducibility isoperibol (1g benzoic acid NBS39i) 0.1 %RSD
Working temperature max. 25 °C
Temperature measurement resolution 0.0001 K
Interface printer Centronix
Interface PC RS232
Oxygen filling no
Degasification no
Decomposition detection no
Decomposition vessel C 5010 yes
Dimensions (W x H x D) 400 x 400 x 400 mm
Weight 20 kg
Permissible ambient temperature 20 - 25 °C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 120 W
