DISTILLATION CABINETIZED STILL MODEL 525
List Price: $24,285.00
Clarkson Price: $19,428.00
You Save: $4,857.00 (20%)
Clarkson Catalog Number: A1085-D
Manufacturer: Barnstead International
Manufacturer Catalog Number: A1085-D
|
|
Clarkson A1085-D
Completely cabinetized distillation system
Barnstead A1085-D
Completely cabinetized distillation system
Choice of two sizes: 2 or 5 GPH
Fully automatic operation
PRODUCT DESCRIPTION
Completely cabinetized: Includes a still and an appropriately matched tin-coated storage tank in a neat, compact
and clean, unit.
Space saving design takes up less space than conventional units, while allowing for point of use installation.
Fully Automatic: Hands-free operation; turns still off when the tank is full, restarts still when tank empties.
Automatically drains the boiling chamber every time the unit is off and every 4 hours of operation, helping to keep
your still clean.
MODEL 210 STILL
Safety feature: interrupts power to heating elements if feed water is off.
Optional bench stand for bench mounting of still.
2 GPH still and 10 gallon storage tank for the production of distilled water.
| Description |
Cabinetized Stills, Model 210 |
| Drain Connector |
Sweat joint for 1-1/4" copper tubing |
| Overall Dimensions D |
15.25 (39) |
| Overall Dimensions H |
41 (103) |
| Overall Dimensions W |
24 (60) |
| Shipping Weight LK |
165 (75) |
| Water Inlet |
Sweat joint for 1/2" copper tubing |

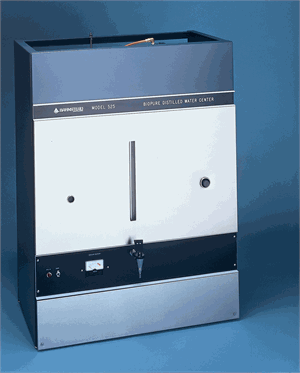

MODEL 525 STILL
Purity meter alerts you of distilled water purity in storage tank.
Q-Baffle® allows for pyrogen removal.
Optional recirculation pump and base mounting stand available.
Storage tank is equipped with a UV lamp for bacterial control.
5 GPH still and 25 gallon storage tank for production of distilled water.
| Description |
Cabinetized Stills |
| Drain Connector |
Sweat joint for 1-1/4" copper tubing |
| Overall Dimensions D |
18.75 (48) |
| Overall Dimensions H |
48 (122) |
| Overall Dimensions W |
36.5 (91) |
| Shipping Weight LK |
425 (193) |
| Water Inlet |
Sweat joint for 3/8" copper tubing |
|
|
|
