Barnstead Classic Still A1213 10 gph Produces Type II Distilled Water
List Price: $17,768.00
Clarkson Price: $14,747.44
You Save: $3,020.56 (17 %)
Clarkson Catalog Number: A1213
Manufacturer: Barnstead Thermo Scientific
Manufacturer Catalog Number: A1213
|
|
Clarkson A1213
Barnstead Classic Still A121310 gph
Produces Type II Distilled Water
Barnstead Thermo Scientific A1213
| Cat. No. |
Model |
Output Flowrate |
Cooling Water Flowrate |
Electrical Requirements |
Phase |
Dimensions L x W x H in. (cm) /Weight |
| A1007
|
Portable Electric
|
0.5 gal./hr. (1.9L/hr.)
|
4 gal./hr. (15L/hr.)
|
120V 50/60Hz, 12A
|
1
|
10 x 21 x 19 in. (26 x 52 x 49cm) / 30lbs
|
| A1011-A
|
Electric, floor stand included
|
1 gal./hr. (3.8L/hr.)
|
8 gal./hr. (30L/hr.)
|
120V, 50/60Hz, 23A
|
1
|
10 x 22 x 66 in. (25 x 56 x 168cm) / 123lbs
|
| A1011-B-61
|
Floor Electric with stand
|
1gal./hr. (3.8L/hr.)
|
8 gal./hr. (30L/hr.)
|
240V 50/60Hz,?12A
|
1
|
10 x 22 x 66 in. (25 x 56 x 168cm) / 110lbs
|
| A1013-B-61
|
Floor Electric with stand
|
2 gal./hr. (7.6L/hr.)
|
16 gal./hr. (61L/hr.)
|
240V 50/60Hz, 26A
|
1
|
11 x 23 x 68 in. (28 x 58 x 173cm) / 110lbs
|
| A1013-C
|
Floor Electric with stand
|
2 gal./hr. (7.6L/hr.)
|
16 gal./hr. (61L/hr.)
|
208V 50/60Hz, 17A
|
3
|
11 x 23 x 68 in. (28 x 58 x 173cm) / 125lbs
|
| A1015-B-61
|
Floor Electric with stand
|
5 gal./hr. (19L/hr.)
|
40 gal./hr. (151L/hr.)
|
240V 50/60Hz, 57A
|
1
|
14 x 35 x 77 in. (36 x 89 x 196cm) / 190lbs
|
| A1015-C
|
Floor Electric with stand
|
5 gal./hr. (19L/hr.)
|
40 gal./hr. (151L/hr.)
|
208V 50/60Hz, 36A
|
3
|
14 x 35 x 77 in. (36 x 89 x 196cm) / 190lbs
|
| A1016-D
|
Floor Electric with stand
|
10 gal./hr. (38L/hr.)
|
80 gal./hr. (303L/hr.)
|
240V 50/60Hz, 66A
|
3
|
14 x 37 x 89 in. (36 x?94 x 226cm) / 360lbs
|
| A1213† *
|
Steam
|
10 gal./hr. (38L/hr.)
|
38 gal./hr. (144L/hr.)
|
N/A
|
N/A
|
19 x 35 x 58 in. (48 x 89 x 147cm) / 290lbs
|
| †Steam Pressure: 35-50 psi, Boiler Horsepower: 3.5, Steam: 90 lb./hr. (41kg/hr.)
|
|
|
|
|
|
|
| Product Detail
|
|
|
|

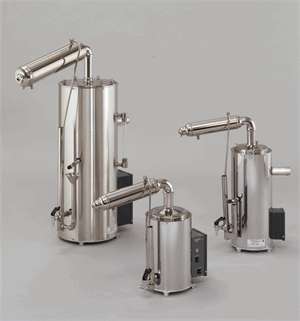

The Barnstead Classic Stills are a durable and reliable Type II water distillation system using time-tested design innovations, including:
Exceptional Water Quality
- Durable copper and bronze with inert pure tin lining prevents contaminants from leaching into water
- Vented condenser strips gaseous impurities
- Unique deconcentrator removes scale-forming impurities from boiler
- Q-Baffle® strips contaminant-laden water droplets from steam to ensure high-quality, pyrogen-free water
Outstanding Protection
Low water cut-off on all units except the 0.5 GPH model prevents still burn-out during feedwater interruption
High Energy Efficiency
Pre-heated feedwater from the condenser feeding the boiler and double-walled boiler conserves energy
Robust, Flexible Design
- Time-tested design originally introduced a century ago
- Available in capacities of 0.5, 1, 2, 5 & 10 GPH
- Space-saving horizontal condenser
- Bench, floor or wall-mounted
|
|
|
|
