Asphalt Binder Analyzer Carbolite ABA 7/35B ASTM D6307

<< Previous in Furnaces Next in Furnaces >>
Clarkson Price: $14,290.00
Clarkson Catalog Number: ABA7/35B
Manufacturer: Carbolite
Supplier Catalog Number: ABA0735B-volts
Reference the price list for the voltage in your country
free shipping

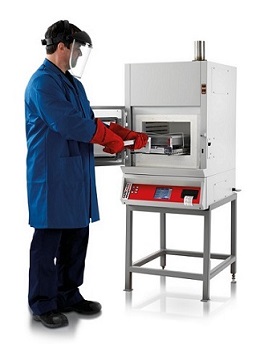

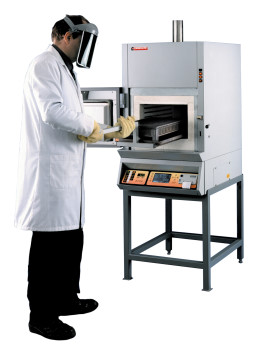

Carbolite ABA 7/35B
Carbolite ABA 7/35BCarbolite ABA 7/35B
Clarkson ABA7/35B
Asphalt Binder Analyzer Carbolite ABA 7/35 ASTM D6307
Asphalt Content Furnace
Carbolite ABA 7/35B
  • There is an alternative to solvent binder extraction!
  • Ignition furnaces have been used for a considerable time in the USA, where the use of chlorinated solvents is banned in many states due to the perceived health risks.
  • The first Carbolite ignition furnaces were introduced in the UK in 1998, and there are now more than 110 in operation across the British Isles in QC laboratories at various coating plants and quality control laboratories.
  • The ignition furnace consists of a combustion chamber with an integral balance located below. The balance contains software to monitor the rate of weight loss during the test.
  • The standard BS EN 12697-39:2004 which describes the test method, has been in circulation since 1999 and is based on the ASTM D 6307-98 and ASSHTO test methods.
  • The test incorporates standard sampling and sample preparation methods. Then the test portion is placed in steel baskets which are then placed in the furnace and the sample weight loss recorded.
    Once the sample has reached a pre-determined constant mass point, the test is automatically stopped.
  • The weight loss minus the aggregate calibration factor equates to the binder content.
  • A standard washed grading is then carried out on the aggregate.
  • The test method does demand some preparatory work in establishing the aggregate calibration factor, (which is an error caused by burn out of materials within the aggregate itself, an effect not inherent to normal oven drying).
  • In addition, different aggregate and sizes of aggregate behave differently and will give a different calibration factor.
  • Carbolite UK is able to provide advice and guidance through all the stages of establishing the calibration factors so that all aggregate characteristics are fully understood.
In summary, the key benefits of the ignition test method are as follows:
  • It provides improvements in health and safety, as well as environmental impact.It is cost effective when setting up a new lab, with less equipment and space required.
  • The binder content is available more quickly than with modified binders than with traditional methods.The test method is less “operator sensitive” than solvent methods.
  • There is less “hands-on” time required by staff.
  • The success of any new test method has to be measured by its accuracy. The advent of the Sector 14 scheme, and its requirement for independent audit samples, has given additional data on the reproducibility aspects of the test.
  • The north of England area of Aggregate Industries currently operates five binder ignition furnaces (from various manufacturers), and no solvent is used in the area.
  • Data gathered from audit samples taken over the past four years has indicated a good correlation with the more conventional test methods.
  • Automatically calculates & uses calibration factors based on both asphalt mixes and dry aggregates
  • Unique automatic input of sample start weight via an optional second external balance eliminates operator error
  • Rapid heat up rates permit the unit to be switched off between test, resulting in reduced power consumption and eliminating the need for a 24-hour timer
  • Customisation of test parameters & ability to save named test setups in a library
  • Permits large sample sizes - up to 4.5kg - to be be tested
  • Independently controlled afterburner significantly reduces furnace emissions
  • Eliminates health & environmental concerns related to use of chlorinated solvents
  • Used by Tarmac, RMC, Lafarge, Aggregate Industries/Bardon Aggregates
