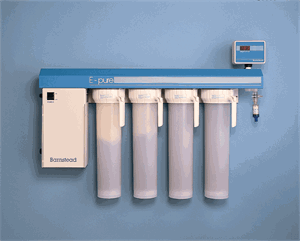

Barnstead Deionizer E-Pure 4-Module System 240V

Cat. No.	No. of Modules	Dimensions (L x W x H)	Electrical Requirements
D4631	3	7.5 x 29 x 28 in. (19 x 74 x 71cm)	120V 50/60Hz
D4641	4	7.5 x 35 x 28 in. (19 x 89 x 71cm)	120V 50/60Hz
D4632-33	3	7.5 x 29x 28 in. (19x 74x 71cm)	240V 50/60Hz
D4642-33 *	4	7.5 x 35 x 28 in. (19 x 89 x 71cm)	240V 50/60Hz



Available as a 3- or 4-module system. Large cartridges provide longer cartridge life and lower operating costs.

• Resistivities up to 18.2 MW-cm and TOC levels below 10ppb
• Virgin polypropylene water pathways prevent recontamination
• Recirculation pump continuously recirculates water throughout the entire system to maintain water purity and reduce the quantity of wastewater required for rinse-up
• Wall-mountable and completely assembled for easy installation
• Quarter-turn quick release canisters allow for easy cartridge replacement
• 0.2µm absolute final filter removes bacteria and particulates that could alter your results
• Digital resistivity meter is automatically temperature compensated to 25°C, preventing fluctuating readings due to temperature changes



Ordering Alerts: Optional accessories include Remote Dispenser (D8952), Low Pressure Pump Protector (D2706), and Low Water Level Pump Protector (D0603, D0606). These products, as well as replacement cartridges and consumables, are available separately. For details, contact your Sales Representative.

Includes: Wall bracket, cartridges and O-rings

Required Accessories: Cartridge pack (sold separately)

Certifications: CE, CSA

Recommended for: AA, GS, buffer preps, feedwater for analytical instruments or labware washers

If feeding E-Pure from a storage reservoir, Low Water Pump Protector is recommended to protect pump from damage if reservoir water level falls below system requirements. Order separately (D0603 for 120V, D0606 for 240V).
