FURNACE DIGITAL 1100°C DROP DOWN DOOR

List Price: $2,280.00

Clarkson Price: $1,938.00

You Save: $342.00 (15%)

Clarkson Catalog Number: ELF11/6

Manufacturer: Carbolite

Manufacturer Catalog Number: ELF 11/6

Quantity:

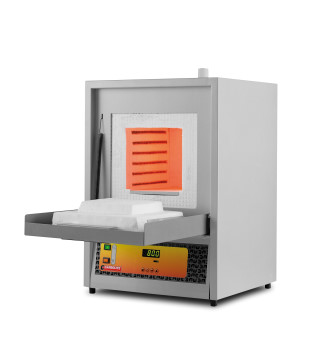

1100°C Drop down door laboratory chamber furnaces (ELF)

Maximum operating temperature of 1100°C
Chamber capacity of 6, 14 or 23 litres
Powerful free radiating coiled wire elements on both sides of the chamber ensure good temperature uniformity
Constructed with rigidised low thermal mass insulation for rapid heating
Heats up to operating temperature in a quarter of the time of traditional "slab" designs
Hard ceramic hearth provides robust base, which can be replaced in the event of spillage
Drop down door can be used as shelf for loading/unloading
Postive break door safety switch isolates chamber from power supply, when the door is opened
Double skinned construction allows convection air flow to cool the outer case, to conform to EN61010 safety standard
Ideal for light duty applications requiring good thermal response
Applications in general industry include, ferrous metal heat treatments; annealing, hardening and tempering
Applications in quality control include, testing of component materials or finished products
Applications in coatings manufacturing include, testing coatings for resistance to fire, and longevity testing of finished coatings
These models are not designed for ashing/burn-off purposes, see the following bullet points for information
Click for specification details
For ashing furnace information, please click here
For burn-off furnace information, please click here
