Electromantle 50ml Controlled Grounded EM Mantle 230V
List Price: $460.00
Clarkson Price: $368.00
You Save: $92.00 (20 %)
Clarkson Catalog Number: EM0050/CE
Manufacturer: Electrothermal
Manufacturer Catalog Number: EM0050/CE
|

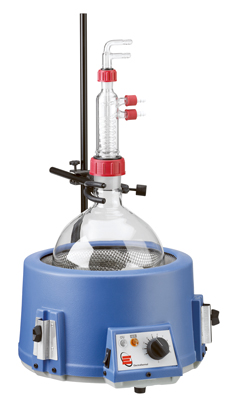

 EM Heating Mantle EM Heating Mantle in use |
|
Clarkson EM0050/CE
Electromantle 50ml Controlled Grounded EM Mantle 230V
Electrothermal - Thermo Scientific EM0050/CE
|
EM Series Heating Mantles
The Electromantle series features a durable, chemically resistant, polypropylene outer housing that minimizes damage from spills.
They allow maximum heat transfer with minimum risk for flask breakage.
• Element temperature 450ºC
• Use with round-bottom flasks from 50ml to 5L
• Built-in energy regulator
• Insulated material in removable heater cartridge
• Pilot lamps for power and heater operation
• Model EM5000/CE has two circuits
Includes: Clamps for 1.3cm diameter support rods, grounded line cord
Warranty: Once year parts and labor
Certifications: CE
Technical Specifications and ordering information:
|
Material
|
Polypropylene Case
|
|
Max Element Temperature
|
450ºC (842°F)
|
Ordering Information
|
Catalog Number
|
Capacity
|
Electrical Requirement
|
|
|
50ml
|
230v 50/ 60Hz, 60w
|
|
|
50ml
|
115v 50/ 60Hz, 70w
|
|
|
50ml
|
230v 50/ 60Hz, 60w, EU Plug
|
|
|
100ml
|
230v 50/ 60Hz, 60w
|
|
|
100ml
|
115v 50/ 60Hz, 70w
|
|
|
100ml
|
230v 50/ 60Hz, 60w, EU Plug
|
|
|
250ml
|
230v 50/ 60Hz, 150w
|
|
|
250ml
|
115v 50/ 60Hz, 150w
|
|
|
250ml
|
230v 50/ 60Hz, 150w, EU Plug
|
|
|
500ml
|
230v 50/ 60Hz, 200w
|
|
|
500ml
|
115v 50/ 60Hz, 200w
|
|
|
500ml
|
230v 50/ 60Hz, 200w EU Plug
|
|
|
1000ml
|
230v 50/ 60Hz, 300w
|
|
|
1000ml
|
115v 50/ 60Hz, 300w
|
|
|
1000ml
|
230v 50/ 60Hz, 300w, EU Plug
|
|
|
2000ml
|
230v 50/ 60Hz, 500w
|
|
|
2000ml
|
115v 50/ 60Hz, 500w
|
|
|
2000ml
|
230v 50/ 60Hz, 500w, EU Plug
|
|
|
3000ml
|
230v 50/ 60Hz, 500w
|
|
|
3000ml
|
115v 50/ 60Hz, 500w
|
|
|
3000ml
|
230v 50/ 60Hz, 500w, EU Plug
|
|
|
5000ml
|
230v 50/ 60Hz, 800w
|
|
|
5000ml
|
115v 50/ 60Hz, 800w
|
|
|
5000ml
|
230v 50/ 60Hz, 800w, EU Plug
|
|
Additional Information:
|
|
|
