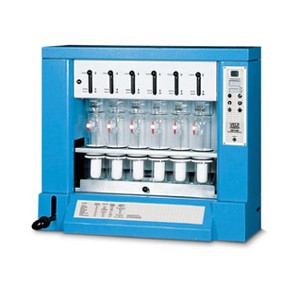

Solvent Extractor 6 place SER 148/6 115V
List Price: $19,144.00
Clarkson Price: $17,229.60
You Save: $1,914.40 (10 %)
Clarkson Catalog Number: F30310242
Manufacturer: Velp Scientifica
Manufacturer Catalog Number: F30310242
|
|
Clarkson F30310242
Solvent Extractor 6 place SER 148/6 115V
Velp Scientifica F30310242
Description:
The SER 148/6 unit allows a substance or group of substances to be quantitatively separated (e.g. fat) from a mixture of solids or semisolids. Extraction is carried out in accordance with the Randall technique, which works in two phases (plus one to recover the distilled solvent).
This technique offers protection against atmospheric pollution, and cuts analysis costs and extraction time.
The instrument, designed to optimize ease of handling, is provided with a microprocessor allowing up to 29 different work programs to be set. The operational phases set will be carried out in sequence with the temperature and remaining time constantly shown on two different displays. The analyses are performed in absolute safety thanks to its IP55 protection rating.
The main fields of application include analysis of food products, animal feeds, detergents, rubber and plastic formulations, pharmaceutical products, soils, etc. for the content of soluble products such as fats, detergents, plasticizers and pesticides.
It's now available the Hydrolysis Unit HU 6 able to perform acid and basic hydrolysis of food and feed samples, prior to solvent extraction using the SER148.
|
GENERAL FEATURES
|
|
|
|
|
Construction material:
|
epoxy painted stainless steel structure
|
|
|
|
|
Number of programs:
|
29
|
|
|
|
|
Number of samples:
|
6
|
|
|
|
|
Max volume extraction cup:
|
150 ml
|
|
|
|
|
2 Display:
|
working temperature / settable parameters
|
|
|
|
|
Power:
|
950 W
|
|
|
|
|
Power supply:
|
115 V or 230 V / 50-60 Hz
|
|
|
|
|
Weight:
|
40 Kg (88 lb)
|
|
|
|
|
Dimension (WxHxD):
|
700x620x390 mm (27.6x24.4x15.4 in)
|
|
|
|
|
|
|
|
|
|
PERFORMANCE
|
|
|
|
|
Solvent recovery:
|
from 50 to 75%
|
|
|
|
|
Reproducibility (RSD):
|
≤ 1%
|
|
|
|
|
|
|
|
|
|
CONSUMPTION
|
|
|
|
|
Cooling water
|
2 l/min
|
|
|
|
|
Sample quantity:
|
from 0,5 to 15 g (generally 2-3 g)
|
|
|
|
|
Solvent volume:
|
from 30 to 100 ml
|
|
|
|
|
|
|
|
|
|
SETTABLE PROGRAMS AND VALUES
|
|
|
|
|
Working temperature:
|
from 100 to 260°C
|
|
|
|
|
Immersion time:
|
from 0 to 999 minutes
|
|
|
|
|
Washing time:
|
from 0 to 999 minutes
|
|
|
|
|
Recovery time:
|
from 0 to 999 minutes
|
Supplied with:
|
|
|
A00000142
|
|
|
|
Extraction cup, 6 pcs/box
|
|
|
|
|
|
CM0111148
|
|
|
|
Extraction thimbles 33 x 80 mm, 25 pcs/box
|
|
|
|
|
|
A00001142
|
|
|
|
6 Extractions thimbles holders
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Optional Accessories:
|
|
|
A00001146
|
|
|
|
Thimble weighing cup
|
|
|
|
|
|
A00000142
|
|
|
|
Extraction cup, 6 pcs/box
|
|
|
|
|
|
A00001145
|
|
|
|
Handling device for extraction cups with integrated heat shields
|
|
|
|
|
|
A00001147
|
|
|
|
Pincer for weighing cups
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A00000073
|
|
|
|
IQ/OQ/PQ Manual
|
|
|
Instrument
|
Power Supply
|
Catalog Number
|
|
|
|
|
|
SER 148/6
|
230 V / 50-60 Hz
|
F30300242
|
|
|
|
|
|
SER 148/6
|
115 V / 50-60 Hz
|
F30310242
|
|
