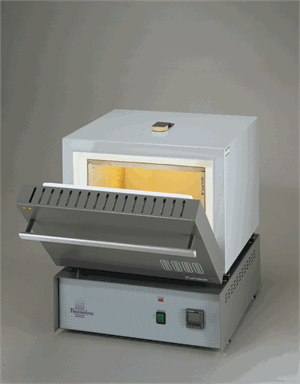

Premium Large Muffle Furnace F6010 240V
List Price: $3,319.00
Clarkson Price: $2,754.77
You Save: $564.23 (17 %)
Clarkson Catalog Number: F6010
Manufacturer: Thermolyne Thermo Scientific
Manufacturer Catalog Number: F6010
|
|
Clarkson F6010
Premium Large Muffle Furnace F6010 240V
Barnstead-Thermolyne / Thermo Scientific F6010
| Specifications
|
|
| Temperature Range
|
100° to 1200°C (212° to 2192°F)
|
| Temperature Stability
|
±0.3°C at 1000°C
|
| Temperature Uniformity
|
±2.2°C at 1000°C
|
| Capacity
|
14L (0.5 cu.ft.)
|
| Interior D x W x H
|
25 x 33 x 18cm (10 x 12.8 x 6.8 in.)
|
| Exterior L x W x H
|
51 x 48.5 x 53.3cm (20.1 x 19.1 x 21 in.)
|
| Shelf
|
Stainless steel
|
| Shipping Weight
|
60.8kg (134 lb.)
|
|
Catalog Number |
Control |
TS |
TU |
Electrical |
Amps |
Power |
|
|
Digital single setpoint (A1)
|
±0.3°C at 1000°C
|
±2.2°C at 1000°C
|
208V 50/60Hz
|
11.2A
|
2325w
|
|
F6010 *
|
Digital single setpoint (A1)
|
±0.3°C at 1000°C
|
±2.2°C at 1000°C
|
240V 50/60Hz
|
12.9A
|
3095w
|
|
|
Digital single setpoint with ramp and dwell (B1)
|
±1.5°C at 1000°C
|
±4.5°C at 1000°C
|
208V 50/60Hz
|
19.2A
|
4000w
|
|
|
Digital single setpoint with ramp and dwell (B1)
|
±1.5°C at 1000°C
|
±4.5°C at 1000°C
|
240V 50/60Hz
|
18.3A
|
4400w
|
|
|
Digital single setpoint with ramp and dwell (B1)
|
±1.5°C at 1000°C
|
±4.5°C at 1000°C
|
240V 50/60Hz
|
18.3A
|
4400w
|
|
|
Digital programmable with 4 programs (C1)
|
±1.5°C at 1000°C
|
±4.5°C at 1000°C
|
208V 50/60Hz
|
19.2A
|
4000w
|
|
|
Digital programmable with 4 programs (C1)
|
±1.5°C at 1000°C
|
±4.5°C at 1000°C
|
240V 50/60Hz
|
18.3A
|
4400w
|
|
|
Digital programmable with 4 programs (C1)
|
±1.5°C at 1000°C
|
±4.5°C at 1000°C
|
240V 50/60Hz
|
18.3A
|
4400w
|
|
|
Digital programmable with 4 programs, 16 segments each (D1)
|
±1.5°C at 1000°C
|
±4.5°C at 1000°C
|
208V 50/60Hz
|
19.3A
|
4000w
|
|
|
Digital programmable with 4 programs, 16 segments each (D1)
|
±0.2°C at 1000°C
|
±2.2°C at 1000°C
|
240V 50/60Hz
|
18.3A
|
4400w
|
|
|
Digital programmable with 4 programs, 16 segments each (D1)
|
±1.5°C at 1000°C
|
±4.5°C at 1000°C
|
240V 50/60Hz
|
18.3A
|
4400w
|
TS = Temperature Stability TU = Temperature Uniformity
|
Details:
- Four heating elements are located on the chamber top, bottom and sides for enhanced temperature uniformity
- Built-in vent port removes undesirable contaminants and moisture to extend the life of the element and unit
- Rear of the chamber incorporates a 0.95cm (0.38 in.) dia. port for monitoring chamber temperatures with independent measuring devices
- Optional stainless-steel shelf doubles load capacity (maximum temperature of 900°C)
- Door safety switch stops power to heating elements when door opens
- Thermocouple break protection cuts power to the heating elements, preventing a thermocouple failure runaway condition
- Furnaces with B1, C1, and D1 control also use a mechanical overtemperature protection relay
Choice of Temperature Controllers
- Digital single setpoint control (A1): Single display shows actual temperature or setpoint
- Digital single setpoint control with single ramp to setpoint and a dwell (B1): Single display shows actual temperature or setpoint
- Digital programmable control with one stored program of eight segments (C1)
- Digital programmable control with four stored programs, 16 segments per program (D1): Controller includes RS-232 communications
Includes: Models F6010 and F6018 include a cord and plug set.
Required Accessories: All except Models F6010 and F6018 require a conduit connection.
Warranty and Service Offering: 12 months
Certifications: All units CSA approved; -33 units also CE marked.
|
|
|
|
