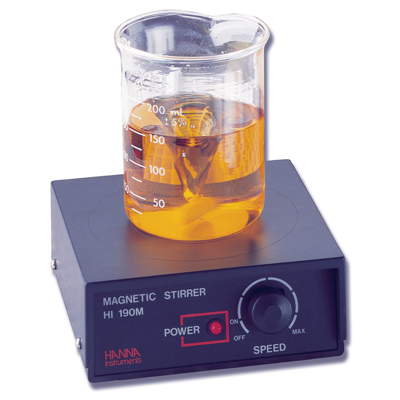

Clarkson HI190M-2
Magnetic Mini-Stirrer with Speedsafe 230V
Hanna Instruments HI 190M-2
Description:
Common stirrers are manufactured with steel and aluminum components. These units are often too
large and heavy to fit in the limited space of a laboratory. The HI 190M, HI 190MB and HI 200M are
compact and lightweight, so that lack of laboratory bench space is no longer a concern. These
stirrers incorporate electronic controls that allow the user to regulate the speed with greater precision.
Often, in the lab, a sample is removed from the stirrer before reducing the speed. This would cause
the motor of conventional equipment to accelerate until it is destroyed. This is not the case with the
HANNA® mini-stirrers. In fact, the internal Speedsafe mechanism will ensure that the maximum
speed is never exceeded. HI 190M and HI 190MB come supplied with an ABS cover that will resist
the harmful effects of chemicals that are accidentally spilled. The ABS covered mini-stirrer is
available in two versions: HI 190M operating at 110 or 220 Vac and HI 190MB at 12 Vdc. This
provides you with the flexibility to choose between field and lab models, as well as being able to use
the HI 190MB for applications where a low input voltage is a must.
HI 200M is supplied with an AISI 316 stainless steel cover. This model is ideal for applications that
create exothermic reactions.
Specifications:
|
Maximum Stirring Capacity
|
|
1 liter
|
|
Speed Range
|
Min.
|
100 rpm
|
|
Speed Range
|
Max.
|
1000 rpm
|
|
Power Supply
|
|
See Chart
|
|
Installation Category
|
|
II
|
|
Cover Material
|
|
ABS plastic
|
|
Environment
|
|
0 to 50°C (32 to 122°F); RH max 95%
|
|
Dimensions
|
|
120 x 120 x 45 mm (4.8 x 4.8 x 1.8")
|
|
Weight
|
|
640 g (1.4 lb.)
|
|
Accessories |
|
|
Voltage adapter from 115V to 12 Vdc (USA plug)
|
|
|
Voltage adapter from 230V to 12 Vdc (European plug)
|
|
|
Micro Stir Bar
|
Order Information:
The HI 190M mini-stirrer with ABS cover, is supplied with micro stir bar and instructions.
