Conductivity Analog Controller (Low Range @ 199.9 S/cm) with 4-20 mA Input from Transmitter
Clarkson Price: This item has been replaced by HI8931DN
Clarkson Catalog Number: HI8931D
Manufacturer: Hanna Instruments
Manufacturer Catalog Number: HI8931D
|
|
Clarkson HI8931D

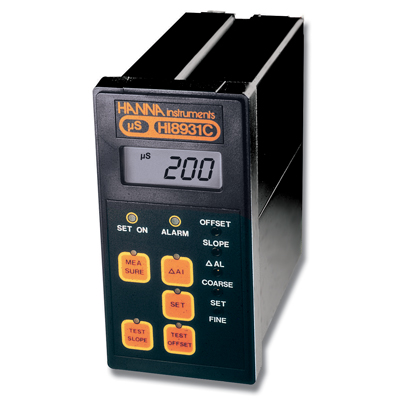

Conductivity Analog Controller (Low Range @ 199.9 µS/cm) with 4-20 mA Input from Transmitter
Hanna Instruments HI 8913D
Description:
These instruments have to be used in conjunction with the HI 8936 transmitters series. Thanks to this
installation it is possible to receive a signal without any noise from a distance of up to 300 meters
from the measuring point.
The dosing type is selectable through a jumper on the rear panel.
Four different models are available with different measurement ranges, each one to be used with the
corresponding HI 8396 model.
The output configuration for connecting a recorder or a PLC can be chosen between 0-20 or 4-20 mA.
The front panel is protected behind a transparent splash-proof cover.
Specifications:
|
Range
|
|
0.00 to 199.9 µS/cm
|
|
Resolution
|
|
0.1 µS/cm
|
|
Accuracy
|
|
±2% F.S.
|
|
Input From Transmitter
|
|
HI 8936C / CL
|
|
Recorder Output
|
|
4-20 mA (isolated)
|
|
Setpoint Relay
|
|
1, isolated, 2A, Max. 240 V, resistive load, 1,000,000 strokes
|
|
Alarm Relay
|
|
1, isolated, 2A, Max. 240 V, resistive load, 1,000,000 strokes
|
|
Power Supply
|
|
115/230 ±10% Vac; 50/60 Hz
|
|
Enclosure
|
|
black anodized aluminum body; front and back with ABS;
transparent splash-proof front cover
|
|
Environment
|
|
-10 to 50°C (4 to 122°F); RH max 95% non condensing
|
|
Panel Cutout
|
|
141 x 69 mm (5.6 x 2.7")
|
|
Weight
|
|
1 kg (2.2 lb.)
|
|
Solutions |
|
|
84 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
1413 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
12880 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
80000 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
Accessories |
|
|
Conductivity Transmitter (Low Range @ 199.9 µS/cm) Using 4-Ring Technology
|
|
|
Conductivity Transmitter (Low Range @ ) Using 4-Ring Technology
|
Order Information:
The HI 8931 series is supplied with mounting brackets and instructions.
