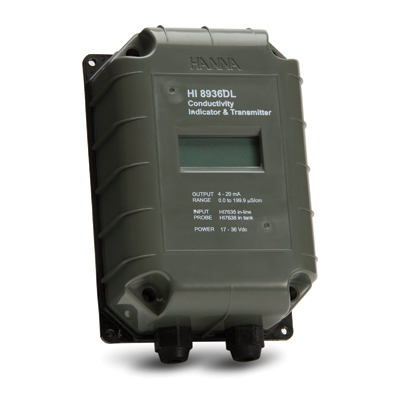

Clarkson HI8936D
Conductivity Transmitter (Low Range @ 199.9 µS/cm) Using 4-Ring Technology
Hanna Instruments HI 8936D
Description:
HANNA® 4-ring potentiometric probe is virtually immune to contamination by unclean solutions. This
allows the transmitter to operate at peak performance at all times.
Temperature effects are compensated for by the built-in temperature sensor on the probe and
transmitter's ATC circuitry with a ß of 2%/°C.
Direct connection of the probe to the transmitter assures a positive electrical connection with no
signal loss over long distances.
Two versions are available, HI 8936 without an LCD, and the LCD version, HI 8936L. HI 8936L
allows easy verification and monitoring of measured values, and is easier to calibrate and maintain.
The HI 8936 series should be used in conjunction with the HI 7635 in-line probe or HI 7638 platinum
probe (see Process Electrodes and Probes).
The HI 8936 series requires external power to the 4-20 mA current loop.
Specifications:
|
Range
|
|
0.0 to 199.9 µS/cm
|
|
Accuracy
|
|
±2% F.S. (excluding probe error)
|
|
Calibration
|
|
manual, 2 point, with offset and slope trimmers
|
|
Temperature Compensation
|
|
fixed or automatic from 0 to 50°C (32 to 122°F) with ß=2%/°C
|
|
Output
|
|
4-20 mA, not isolated, max 500 Ohm
|
|
Probe
|
|
HI 7635 (in-line application) or HI 7638
|
|
Protection
|
|
IP 65
|
|
Power Supply
|
|
17-36 Vdc
|
|
Environment
|
|
0 to 50°C (32 to 122°F); RH max 95% non-condensing
|
|
Dimensions
|
|
165 x 110 x 90 mm (6.5 x 4.3 x 3.5")
|
|
Weight
|
|
1 kg (2.2 lb.)
|
Accessories:
|
Electrodes |
|
|
Industrial In-line Conductivity Probe with Automatic Temperature Compensation
|
|
Solutions |
|
|
12880 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
1413 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
84 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
80000 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
Accessories |
|
|
6-Wire Cable for 4-ring Conductivity Probes
|
Order Information:
All HI 8936 model are supplied with instructions.
**Add "L" to end of Product Code for model with LCD.
