TITRATOR W/2X25ML BURETS AND STIRRER 115V
Clarkson Price: $7,905.00
Clarkson Catalog Number: HI902-01
Manufacturer: Hanna Instruments
Manufacturer Catalog Number: HI902-01
|
|
Clarkson HI902-01

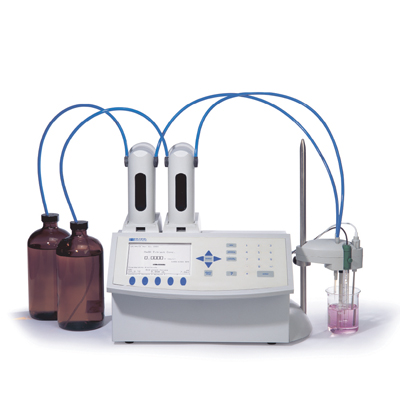

Automatic Titrator, Titrator supplied complete with two burette drivers assemblies, 2 x 25 ML glass
burettes, stirrer unit, 115 VAC
Hanna Instruments HI 902-01
Description:
HI 901 is an automatic titrator from HANNA® that complements our wide range of products dedicated to quick and accurate laboratory analysis. Each unit is provided with numerous features amenable to routine samples analysis. HI 901 performs acid/base, potentiometric titrations. This versatile titrator offers a total of 100 methods: 89 of which can be customized. When powered on, the instrument initiates an internal diagnostics check and then readies itself for the first titration of the day. A large LCD screen clearly shows the chosen method, correlated information and also indicates which parameters may be adjusted. A real-time titration curve is shown on the display; this feature is useful when new methods are tested or when a procedure needs to be optimized. At the end of the titration, all data, including the graph, are automatically stored in memory and can be copied to disk via the built-in floppy drive or through direct connection with the serial cable supplied with the titrator. The device is equipped with an RS485 serial port.
The Hanna HI901 has many market specific applications.
- Wine Analysis – The Hanna HI901 can measure critical parameters in wine such as pH, Free SO2, Total SO2, Total acidity, Volatile acidity, Reducing Sugars, Nitrogen, and more.
- Food and Dairy analysis - The Hanna HI901 can measure pH, Acidity, NaCl, calcium, chloride, SO2, Alkalinity and more
- Water Analysis – pH, Alkalinity, Hardness, calcium, Fluoride and more.
- Pharmaceutical - pH, Acidity, Fluoride, Chloride, Ammonia
- Plating - Metals in Alkaline/Silver, Chromium, Zinc, Acids
The HI902 has all the features of the HI901 plus the ability to conduct back titrations and multiple inflection point titrations.
Users can connect pH or ORP electrodes to this unit, as well as create a complete workstation with a PC, monitor, keyboard and printer.
This unit complies with GLP specifications, providing validation support for analysis. All GLP information from each sample can be stored, including ID number, date and time of analysis, electrode ID code and last calibration date. Up to 100 reports of analysis, complete with titration curve graphing are possible. A calibration "time-out" can be set and the user can be advised when the pH electrode needs to be calibrated.
The instrument's status can be viewed clearly on the large LCD screen. Contained in the set-up menus, features like language, display brightness, resolution, pH electrode calibration, date and hour can be adjusted. During analysis, the titration is displayed in real-time together with the stored data. Date, hour, temperature (when probe is connected) and warning messages, such as an obligatory pH electrode calibration can all be displayed for your convenience.
Specifications:
| Range |
|
-2000.0 to 2000.0 mV / -2.000 to 20.000 pH / -5.0 to 105.0°C |
| Resolution |
|
0.1 mV / 0.1/0.01/0.001 pH / 0.1°C |
| Accuracy |
|
±0.1 mV / ±0.001 pH / ±0.1°C |
| Burette Capacity |
|
5 mL (±5 µl), 10 mL (±10 µl), 25 mL (±25 µl) and 50 mL (±50 µl)
with 0.001 mL display resolution |
| Burette Resolution |
|
1/40000 |
| Dosing Accuracy |
|
0.1% of full burette volume |
| Display |
|
graphic LCD 120 x 90 mm (4.7 x 3.5"); 320 x 240 pixel resolution |
| Menu Language |
|
English, Italian and Portuguese |
| Method |
|
100 (11 standard, 89 user-defined) |
| Burette Auto Detection |
|
burette size is automatically recognized when inserted into the unit |
| Programmable Stirrer |
|
propeller type, 100-2500 RPM with 100 rpm resolution |
| Flow Rate |
|
user-selectable from 0.1 mL/min to 2x vol. burette/min |
| Temperature Compensation |
|
pH measurements are automatically temperature compensated |
| pH Calibration |
|
manual or automatic, at 1-5 points with 4 buffer sets for custom buffers |
| Potentiometric Titrations |
|
Acid/Base (pH or mV mode), Redox, Precipitation, Complexometric, non aqueous,
ion-selective, argentometric (in mV mode only) |
| Titration Methods |
|
fixed mV or pH end-point detection and first equivalency point detection
(with the first or second derivative of titration curve) |
| Real Time Data |
|
mV/volume or pH/volume titration curve, graph of first or second derivatives |
| Data Storage |
|
up to 100 complete titrations and pH/mV logging complete reports |
| Disk Drive |
|
Built-in 3.5" floppy disk drive |
| Periphereals |
|
connections for VGA display, PC-keyboard, parallel printer, RS232 interface |
| Power Supply |
|
115 Vac or 230 Vac, 50/60 Hz, fuse-protected (See Chart) |
| Power Consumption |
|
40 VA max. |
| Environment |
|
10 to 40°C (50 to 104°F); RH max 95% |
| Dimensions |
|
390 x 350 x 380 mm (15.3 x 13.8 x 14.9") |
| Weight |
|
approx. 10 kg (22 lb.) with one pump |
|
|
|
