Printing and Logging Dissolved Oxygen Meters W/case.
|
Clarkson Catalog Number: HI9141
Manufacturer Catalog Number: HI9141
|
|
Clarkson HI9141
Printing and Logging Dissolved Oxygen Meters W/case.
Hanna Instruments HI 9141
Description:

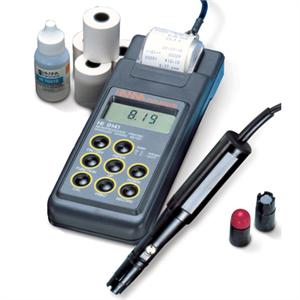

HI 9141 and HI 91410 are portable, printing D.O. meters designed for continuous monitoring and recording at selectable time intervals. The low-power printer uses regular paper that is easily sourced and will not fade over time.
HI 91410 combined all of the comprehensive printing functions of the HI 9141, with the capability to log measurements. In addition to supplying the user with instant print-outs of D.O., HI 91410 also provides data logging storage of up to 8000 readings. Scroll through the data at any time, print or even transfer to a computer system via (optional) HI 9200 infrared cradle, for elaboration or permanent storage. Simply place the meter on the cradle and, at the touch of a button, all of the recorded lots are transferred in seconds. This infrared connection is important in humid environments, where a standard RS232 plug on a meter could become damaged.
In addition to the automatic calibration feature, both meters automatically compensate for two very important parameters: altitude from 0 to 1900 meters (6230'), and salinity from 0 to 40 g/L.
Specifications:
|
Range
|
O2
|
0.00 to 19.99 ppm (mg/L)
|
|
Range
|
Temperature
|
0.0 to 50.0°C
|
|
Resolution
|
O2
|
0.01 mg/L
|
|
Resolution
|
Temperature
|
0.1°C
|
|
Accuracy
|
O2
|
±1.5% F.S.
|
|
Accuracy
|
Temperature
|
±0.5°C
|
|
Calibration
|
|
automatic, in air, at 100%
|
|
Temperature Compensation
|
|
automatic, 0 to 30°C
|
|
Altitude Compensation
|
|
0 to 1900 m (resolution 100 m)
|
|
Salinity Compensation
|
|
0 to 40 g/L (resolution 1 g/L)
|
|
Probe
|
|
HI 76407/4, polargraphic, 4 m (13') cable (included)
|
|
Printer
|
|
low power impact type-belt, common paper, 38 mm (HI 710034)
|
|
Printing Interval
|
|
selectable between 1, 2, 5, 10, 15, 30, 60, 120 and 180 minutes
|
|
Power Supply
|
|
4 x 1.5V AA / approx. 70 hours of continuous use (with rapid printing interval);
auto-off after 4 hours of inactivity; or input for 12 Vdc power adapter
|
|
Environment
|
|
0 to 50°C (32 to 122°F); RH max 95% non-condensing
|
|
Dimensions
|
|
220 x 82 x 66 mm (8.7 x 3.2 x 2.6")
|
|
Weight
|
|
550 g (1.21 lb.)
|
Accessories:
|
Electrodes |
|
|
Dissolved Oxygen Probe for HI 9141, HI 9142, HI 9143, HI 91410 and HI 9145
|
|
|
Dissolved Oxygen Probe
|
|
|
Dissolved Oxygen Probe
|
|
|
Membranes for D.O. Probes
|
|
Solutions |
|
|
Electrolyte Solution for D.O. Probes
1 x 30mL bottle
|
|
Accessories |
|
|
Voltage adapter from 230V to 12 Vdc (European plug)
|
|
|
Voltage adapter from 115V to 12 Vdc (USA plug)
|
|
|
Infrared Transmitter for PC Connection, 9-pin Serial Connector
|
|
|
Windows® Compatible Software for Logging Instruments,
Photometers and Turbidity Meters
|
|
|
Paper for Built-in Printers
|
|
|
Ink Cartridge for Built-in Printers
|
|
|
Rugged Carrying Case for Portable, Waterproof and Printing Meters
|
Order Information:
HI 9141 is supplied with D.O. probe HI 76407/4 with 4m (13') cable, 2 spare membranes, electrolyte solution HI 7041S (30 mL), 5 paper rolls, batteries, rugged carrying case and instructions.
