Conductivity Analog Controller (Low Range @ 199.9 S/cm) with Direct Input from Potentiometric Probe
List Price: $516.00
Clarkson Price: $464.40
You Save: $51.60 (10 %)
Clarkson Catalog Number: HI943500D
Manufacturer: Hanna Instruments
Manufacturer Catalog Number: HI943500D
|
|
Clarkson HI943500D
Conductivity Analog Controller (Low Range @ 199.9 µS/cm) with Direct Input from Potentiometric Probe

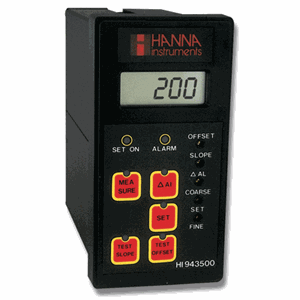

Hanna Instruments HI 943500D
These controllers allow the direct connection of a potentiometric conductivity probe (HI 7638) with a cable up to 20 meters long, without
using any transmitter.
Four different models are available with different measurement ranges, to satisfy any application requirements.
The output configuration for connecting a recorder or a PLC can be chosen between 0-20 or 4-20 mA.
The LED on the front panel indicates the operating status of the controller.
The automatic temperature compensation (ATC) is performed directly by the HI 7638 probe with built-in temperature sensor.
The front panel is protected behind a transparent splash-proof cover.
Specifications
|
Range
|
|
0.0 to 199.9 mS/cm
|
|
Resolution
|
|
0.1 mS/cm
|
|
Accuracy
|
|
±2% F.S.
|
|
Temperature Compensation
|
|
automatic, 0 to 60°C (32 to 140°F), with ß=2%/°C
|
|
Recorder Output
|
|
4-20 mA (isolated)
|
|
Setpoint Relay
|
|
1, isolated, 2A, Max. 240 V, resistive load, 1,000,000 strokes
|
|
Alarm Relay
|
|
1, isolated, 2A, Max. 240 V, resistive load, 1,000,000 strokes
|
|
Power Supply
|
|
115/230 ±10% Vac; 50/60 Hz
|
|
Enclosure
|
|
black anodized aluminum body; front and back with ABS;
transparent splash-proof front cover
|
|
Environment
|
|
-10 to 50°C (4 to 122°F); RH max 95% non condensing
|
|
Panel Cutout
|
|
141 x 69 mm (5.6 x 2.7")
|
|
Weight
|
|
1 kg (2.2 lb.)
|
|
Electrodes |
|
|
Industrial Conductivity Probe with Automatic Temperature Compensation and NTC Sensor
|
|
Solutions |
|
|
84 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
1413 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
12880 µS/cm (µmho/cm)
1 x 500 mL bottle
|
|
|
80000 µS/cm (µmho/cm)
1 x 500 mL bottle
|
Order Information:
The HI 943500 series is supplied with mounting brackets and instructions.
