Copper Low Range Portable Photometer with 560 nm filter and Cal Check

Copper Low Range Portable Photometer with 560 nm filter and Cal Check

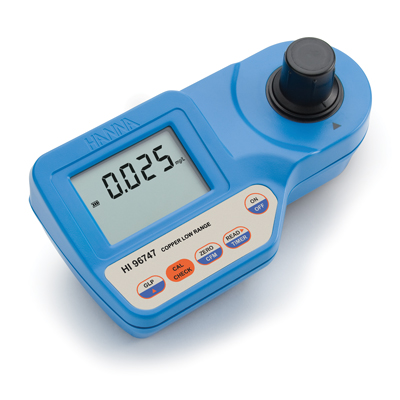

Hanna Instruments HI 96747



HI 96747 is a auto-diagnostic photometer engineered to measure a wide range of copper

concentrations. Due to the specially formulated powder reagent with long-term stability, copper

analysis is possible even where iron and calcium is present, such as in sea water.



Both meters use an exclusive positive-locking system to ensure that the cuvette is in the same

position every time it is placed into the measurement cell. It is designed to fit a cuvette with a larger

neck making it easier to add both sample and reagents. The cuvette is made from special optical

glass to obtain best results.



Range		0.000 to 1.500 mg/L
Resolution		0.001 mg/L for measurement; 0.01 mg/L for calibration and validation
Accuracy		±0.010 mg/L ±5% of reading @ 25°C
Light Source		tungsten lamp
Light Detector		silicon photocell with narrow band interference filter @ 560 nm
Environment		0 to 50°C (32 to 122°F); Max 95% RH non-condensing
Power Supply		9V battery
Auto Shut-off		after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder
Dimensions		192 x 104 x 69 mm (7.6 x 4.1 x 2.7")
Weight		360 g (12.7 oz.)
Method		adaptation of the USEPA approved bicinchoninate method



HI 731331	Glass Cuvette Set
HI 731335	Cuvette Cap for HI 957xx Series Meters
HI 731318	Cuvette Cleaning Cloth
Reagents & Standards
HI 95747-01	Copper, LR, Bicinchoninate Acid Method (100 Tests)
HI 95747-03	Copper, LR, Bicinchoninate Acid Method (300 Tests)



Order Information:
HI 96747 is supplied with sample cuvettes with caps (2), 9V battery and instruction manual.
HI 96747C includes sample cuvettes with caps (2 ea.), 9V battery, scissors, cloth for wiping cuvettes,

instrument quality certificate, instruction manual and rigid carrying case.



Manual: (Download)
