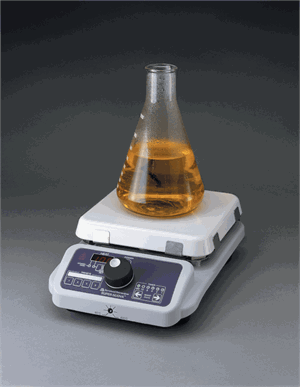

Super-Nuova Digital Hot Plate 7.25" x 7.25" Ceramic Top 120V

Cat. No.	Heating Surface Area	Material	Load Capacity	Temperature Range	Overall L x W x H	Electrical Requirements
HP131725Q *	18.4 x 18.4cm (7.25 x 7.25 in.)	Ceramic	4L	1° to 370° C	33 x 20.8 x 9.7cm	120V 50/60Hz, 660w, 5.5A
HP131720-33Q	18.4 x 18.4cm (7.25 x 7.25 in.)	Ceramic	4L	1° to 370°C	33 x 20.8 x 9.7cm	220-240V 50/60Hz, 690w, 2.9A
HP131724Q	7.25 x 7.25 in. (18.4 x 18.4cm)	Ceramic	4L	1° to 370° C	33 x 20.8 x 9.7cm	220-240V 50/60 Hz, 690w, 2.9A
HP133424Q	7.25 x 7.25 in. (18.4 x 18.4cm)	Aluminum	4L	1° to 300°C	33 x 20.8 x 9.7cm	120V 50/60Hz, 660w, 5.5A
HP133425Q	18.4 x 18.4cm (7.25 x 7.25 in.)	Aluminum	4L	1° to 300°C	33 x 20.8 x 9.7cm	120V 50/60Hz, 660w, 5.5A
HP133420-33Q	18.4 x 18.4cm (7.25 x 7.25 in.)	Aluminum	4L	1° to 300°C	33 x 20.8 x 9.7cm	220-240V 50/60Hz, 690w, 2.9A
HP133734Q	10.25 x 10.25 in. (26 x 26cm)	Ceramic	6L	1° to 370° C	41.1 x 28.7 x 10.2cm	120V 50/60Hz, 1200w, 10A
HP133735Q	26 x 26cm) (10.25 x 10.25 in.)	Ceramic	6L	1° to 370° C	41.1 x 28.7 x 10.2cm	120V 50/60Hz, 1200w, 10A
HP133730-33Q	26 x 26cm) (10.25 x 10.25 in.)	Ceramic	6L	1° to 370°C	41.1 x 28.7 x 10.2cm	220-240V 50/60Hz, 1345w, 5.6A



Available in two sizes. Feature unique HOT TOP alert for ultimate protection and sophisticated programmable controls.

Operating Features

• Microprocessor control ensures accurate and stable setpoints for temperature
• Electronic feedback controls monitor either top plate surface or liquid temperature (when using external PTFE-coated probe, included) and adjusts to setpoint
• Single control knob controls heat; lock feature prevents accidental changes
• Digital temperature display
• Temperature adjusts in 1° increments
• Four user-defined temperature memory keys recall settings
• Calibration mode allows remote probe to be calibrated to external standards; probe can be programmed as a system (probe, control, display) at any user-selected temperature
• Can be used in 0 to 27°C, 80% relative humidity, noncondensing environment
• RS-232 port allows output of time count, temperature setpoint, top surface/remote probe temperature

Safety Features

• Cast-aluminum base diverts spills from internal electronics
• Patented HOT TOP warning system helps prevent accidental burns
• Low-profile design and stable, rugged base prevent tipping and spillage
• Walk-away timer allows safe, automatic, unattended operation
• User-adjustable overtemperature protection prevents overheating, short-circuiting and internal damage in case of sample overflow

Ceramic Top Models

• Clean easily and resist alkalis and acids
• Seamless, reflective white surface aids sample visibility
• Heat to higher temperatures than aluminum tops



Includes: Detachable line cord and plug, 6 in. Type K probe.

Warranty and Service Offering: Three years

Certifications: cCSAus (all models), CE (220-240V models)
