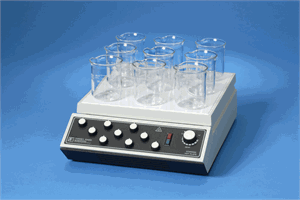

Analog Hot Plate Stirrer 9-Position Ceramic Top 115V
List Price: $1,750.00
Clarkson Price: $1,487.50
You Save: $262.50 (15 %)
Clarkson Catalog Number: H3505-HS19
Manufacturer: Torrey Pines Scientific
Manufacturer Catalog Number: HS19
|
|
Clarkson H3505-HS19
Analog Hot Plate Stirrer 9-Position Ceramic Top 115V
Torrey Pines Scientific HS19
FEATURES:
- Heat to 450°C on plate surface in minutes
- Stir from 100–1500 rpm on each stirring position with individual controls
- Plate size on all units is 12” (30.48 cm) x 12”(30.48 cm)
- Solid ceramic heater surface for excellent chemical resistance
- Heater plate mounted in cast aluminum frame that remains cool for safety
- Powerful 1200 watt heaters on hot plate/stirrers
- Fused for safety
- Rugged cast aluminum chassis
- 12-month warranty
-
UL, CSA and CE certified
Product Description:
Each Torrey Pines Scientific hot plate is made with a cast aluminum chassis that is painted with chemically resistant epoxy paint. The chassis is designed to keep spills out of the case. Heating and stirring controls are solid state and are mounted well forward of the heater surface to prevent accidental burns. Additionally, the solid ceramic heater plate is framed in cast aluminum and is designed to keep heat from the edge of the heater plate.
Product Specification:
| Hot Plate: |
| Solid ceramic
|
| Maximum temperature of the plate surface
|
Ceramic: 450°C
|
| Time to maximum temperature, unloaded
|
10 minutes
|
| Temperature control
|
+/-2.5°C
|
| Heater power, watts
|
1200 watts
|
| Stirrer: |
| Speed range unloaded
|
100–1500 rpm
|
| Maximum load, aqueous
|
HS15 and ST15: 5-800ml beakers
HS19 and ST19: 9-500ml beakers
|
| Magnet strength
|
20 lbs
|
| Weight capacity on heater surface
|
Over 50 lbs (22.5 kg)
|
| Electrical: |
| Operating voltages available
|
100 VAC/50 Hz, 115 VAC/60 Hz, 220 VAC/60 Hz and 230 VAC/50 Hz
|
| Power consumption
|
HS15: 1500 watts
HS19: 1700 watts
ST15: 300 watts
ST19: 540 watts
|
| Current Draw
|
100/115 VAC Models:
HS15: 12.5 amps
HS19: 14.5 amps
ST15: 2.5 amps
ST19: 4.5 amps
220/230 VAC Models:
HS15: 6.2 amps
HS19: 7.5 amps
ST15: 1.5 amps
ST19: 2.25 amps
|
|
Additional Information: |
|
Unit size
|
17” x 12.5” x 5.5”
|
|
Unit Weight, unpacked
|
HS15 and ST15: 28 lbs (12.7 kg)
HS19 and ST19: 38 lbs (17.2 kg)
|
|
|
|
