ROTARY EVAPORATOR IKA RV06-ML1B 230V
List Price: $6,910.00
Clarkson Price: $5,873.50
You Save: $1,036.50 (15%)
Clarkson Catalog Number: 8010000
Manufacturer: IKA
Manufacturer Catalog Number: 8010000
|
|
Description:

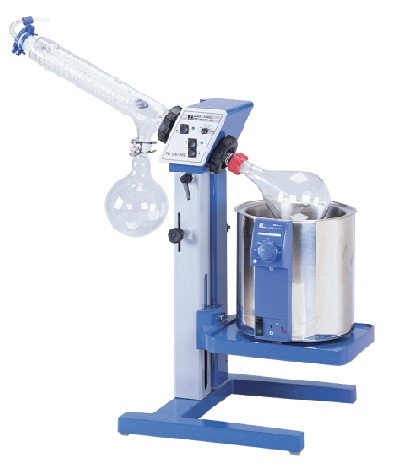

Consisting of heating bath HB 4 basic, set of glassware RV 06.1 with diagonal condenser and drive RV-06 ML with lift with electrical height adjustment 230v.
IKA 8010000
Specifications:
|
RV 06-ML 1-B |
| Type of cooling |
diagonal |
| Cooling surface |
1200 cm2 |
| Evaporator capacity |
1000 ml/h |
| Motor principle |
DC |
| Motor rating input |
45 W |
| Motor rating output |
36 W |
| Speed range |
10 - 240 1/min |
| Lift |
Motor |
| Stroke |
150 mm |
| Heating temperature range |
room temp. - 225 °C |
| Heat output |
1000 W |
| Heat control accuracy |
5 ±K |
| Bath volume max. |
4 l |
| Vacuum controller integrated |
no |
| Dimensions (W x H x D) |
840 x 880 x 390 mm |
| Weight |
18 kg |
| Permissible ambient temperature |
5 - 40 °C |
| Permissible relative moisture |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| RS 232 interface |
no |
| Analog output |
no |
| Voltage |
220 - 240 / 100 - 120 V |
| Frequency |
50/60 Hz |
| Power input |
1050 W |
IKA 8010001 115v also available
|
|
|
