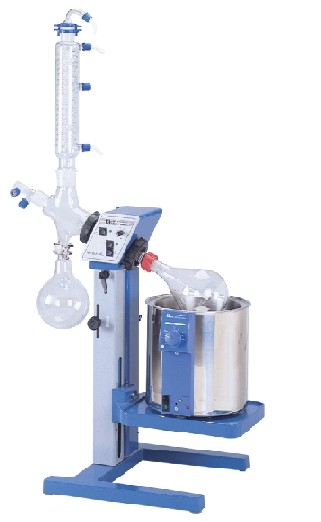

ROTARY EVAPORATOR IKA RV06-ML2B 115V

Consisting of heating bath HB 4 basic, set of glassware RV 06.2 with vertical condenser (space-saving), drive RV 06-ML with lift with electrical height adjustment 115v.
- Wearless drive with brushless DC motor
- Convenience and safety with motorized lift; the glassware is not moved
- Condenser geometry with 1,200 cm2 cooling surface, higher yield and cooler condensate
- No chimney effect, no foaming
- Rodaviss screw joint allows bonded ground joints to be released easily, removable screw connections facilitate cleaning of glass components



RV 06-ML 2-B
Type of cooling	vertical
Cooling surface	1200 cm2
Evaporator capacity	1000 ml/h
Motor principle	DC
Motor rating input	45 W
Motor rating output	36 W
Speed range	10 - 240 1/min
Lift	Motor
Stroke	150 mm
Heating temperature range	room temp. - 225 °C
Heat output	1000 W
Heat control accuracy	5 ±K
Bath volume max.	4 l
Vacuum controller integrated	no
Dimensions (W x H x D)	640 x 1130 x 390 mm
Weight	18 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	no
Analog output	no
Voltage	220 - 240 / 100 - 120 V
Frequency	50/60 Hz
Power input	1050 W
