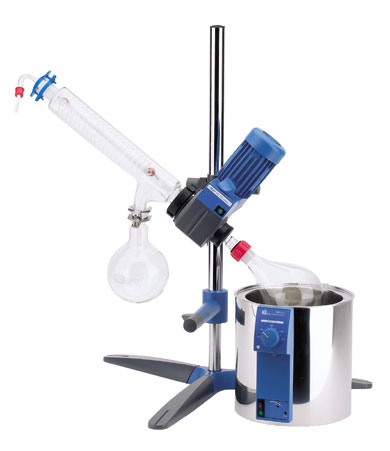

ROTARY EVAPORATOR IKA RV 05 BASIC 1-B 115v

Newly designed! Consisting of heating bath HB 4 basic, set of glassware RV 06.1 with diagonal condensor, drive RV 05 basic, telescopic stand RV 05.3 and boss head clamp 271, 115v.
- Easy and jolt-free raising and lowering of the rotary evaporator
- Telescopic stand tiltable to the side
- Rodaviss screw joint allows bonded ground joints to be released easily, removable screw connections facilitate cleaning of glass components
- New condenser geometry with 1,200 cm2 cooling surface, higher yield and cooler condensate constitute a contribution to environmental protection
- No chimney effect, no foaming



 Data Sheet

RV 05 basic 1-B
Type of cooling	diagonal
Cooling surface	1200 cm2
Evaporator capacity	1000 ml/h
Motor principle	asynchronous
Motor rating input	133 W
Motor rating output	65 W
Speed range	46 - 260 1/min
Lift	manual
Stroke	190 mm
Heating temperature range	room temp. - 225 °C
Heat output	1000 W
Heat control accuracy	5 ±K
Bath volume max.	4 l
Vacuum controller integrated	no
Dimensions (W x H x D)	520 x 900 x 450 mm
Weight	12 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 20
RS 232 interface	no
Analog output	no
Voltage	220 - 240 / 100 - 120 V
Frequency	50/60 Hz
Power input	1133 W
