Muffle Furnace L5/13 with Brick Insulation Flap Door B410 Controller 120V

<< Previous in Furnaces Next in Furnaces >>
List Price: $4,290.00
Clarkson Price: $3,861.00
You Save: $429.00 (10 %)
Clarkson Catalog Number: L-051S3RN-120
Manufacturer: Nabertherm
Supplier Catalog Number: L-051S3RN-120
Naberthern ships to the East Coast for $50, Mid-West $70, West Coast $90
Nabertherm L5/13 with Flap Door L-051S3RN-120, L-051S3RN-208, L-051S3RN-240, L-051S3TN-120, L-051S3TN-208, L-051S3TN-240, L5/13/B410 and L5/13/C450
Nabertherm L5/13 with Flap Door L-051S3RN-120, L-051S3RN-208, L-051S3RN-240, L-051S3TN-120, L-051S3TN-208, L-051S3TN-240, L5/13/B410 and L5/13/C450 Nabertherm LT5/13 with Lift Door L-051T3RN-120, L-051T3RN-208, L-051T3RN-240, L-051T3TN-120, L-051T3TN-208, L-051T3TN-240, LT5/13/B410 and LT5/13/C450
Clarkson L-051S3RN-120

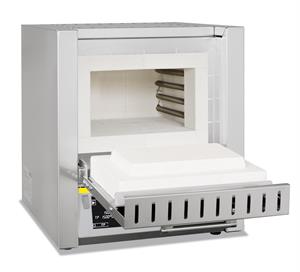

Muffle Furnace L5/13 with Brick Insulation Flap Door B410 Controller 120V
Nabertherm L-051S3RN-120 / VWR 75994-720

Specifications
Tmax 1300°C
Inner dimensions in mm (WxDxH) 200x170x130
Outer dimensions in mm (WxDxH)
490x450x580+320¹
Volume 5L
Connected load  2.4 kW
Weight  42 kg
Minutes to Tmax²
45
¹Including opened lift door (LT models)
²If connected at 230 V 1/N/PE rsp. 400 V 3/N/PE

Catalog Number Model Controller Voltage
With Flap Door
L-051S3RN-120 *  L5/13 B410 120V
L-051S3RN-208 L5/13 B410 208V
L-051S3RN-240 L5/13 B410 240V
L-051S3TN-120 L5/13 C450 120V
L-051S3TN-208 L5/13 C450 208V
L-051S3TN-240 L5/13 C450 240V
With Lift Door
L-051T3RN-120 LT5/13 B410 120V
L-051T3RN-208 LT5/13 B410 208V
L-051T3RN-240 LT5/13 B410 240V
L-051T3TN-120 LT5/13 C450 120V
L-051T3TN-208 LT5/13 C450 208V
L-051T3TN-240 LT5/13 C450 240V


Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times for these muffle furnaces. Thanks to their robust lightweight refractory brick insulation, they can reach a maximum working temperature of 1300 °C. These muffle furnaces thus represent an interesting alternative to the familiar L(T) 3/11 models, when you need particularly short heating times or a higher application temperature.

  • Tmax 1300 °C
  • Heating from two sides
  • Heating elements on support tubes ensure free heat radiation and a long service life
  • Multi-layer insulation with robust lightweight refractory bricks in the furnace chamber
  • Housing made of sheets of textured stainless steel
  • Dual shell housing for low external temperatures and stability
  • Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
  • Adjustable air inlet in the furnace door
  • Exhaust air outlet in rear wall of furnace
  • Solid state relays provide for low-noise operation
  • Defined application within the constraints of the operating instructions
  • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
