*Compact Muffle Furnace LE 1/11 with R7 Controller 120V

<< Previous in Furnaces Next in Furnaces >>
List Price: $1,570.00
Clarkson Price: $1,413.00
You Save: $157.00 (10 %)
Clarkson Catalog Number: LE012K17N-120
Manufacturer: Nabertherm
Supplier Catalog Number: LE012K17N-120
Naberthern ships to the East Coast for $50, Mid-West $70, West Coast $90
Nabertherm LE012K17N LE 1/11 with R7 Controller LE012K17N-120 and LE012K17N-240
Nabertherm LE012K17N LE 1/11 with R7 Controller LE012K17N-120 and LE012K17N-240 Nabertherm LE012K17N Compact Muffle Furnace LE 2/11 with R7 Controller LE021K17N-120 and LE021K17N-240 Nabertherm LE061K17N Compact Muffle Furnace LE 6/11 with R7 Controller LE061K17N-120 and LE061K17N-240
Clarkson LE012K17N-120

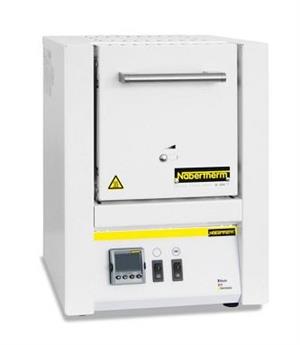

Compact Muffle Furnace LE 1/11 with R7 Controller 120V
Nabertherm LE012K17N-120 / Cole-Parmer EW-33335-09 / VWR 75994-476

Catalog Numbers Model Electrical Volume Interior Dimension D x H x W Exterior Dimension D xH xW Weight
LE012K17N-120 LE 1/11  120V, 1.5KW,
1-phase
1 L 115 x110 x90 mm 280 x430 x290 mm 10 kg
LE012K17N-240 LE 1/11  240V, 1.5KW,
1-phase
1 L 115 x 110 x90 mm 280 x430 x290 mm 10 kg
LE021K17N-120 LE 2/11  120V, 1.8KW,
1-phase
2 L 180 x110 x110 mm 385 x430 x330 mm 10 kg
LE021K17N-240 LE 2/11  240V, 1.8KW,
1-phase
2 L 180 x110 x110 mm 385 x430 x330 mm 10 kg
LE061K17N-120 LE 6/11  120V, 1.8KW,
1-phase
6 L 200 x170 x170 mm 435 x490 x390 mm 18 kg
LE061K17N-240 LE 6/11  240V, 1.8KW,
1-phase
6 L 200 x170 x170 mm 435 x490 x390 mm 18 kg
LE141K17N-120 LE 14/11  240V, 2.9KW,
1-phase
14 L 300 x220 x220 mm 535 x540 x440 mm 25 kg
LE141K17N-240 LE 14/11  240V, 2.9KW,
1-phase
14 L 300 x220 x220 mm 535 x540 x440 mm 25 kg

Nabertherm furnaces are available for mains voltages from 110V thru 240V at 50 Hz or 60 Hz.

With their unbeatable price/performance ratio, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

  • Tmax 1100 °C, working temperature 1050 °C
  • Heating from two sides from heating elements in quartz glass tubes
  • Maintenance-friendly replacement of heating elements and insulation
  • Insulation made of non-classified fiber material
  • Housing made of sheets of textured stainless steel
  • Dual shell housing for low external temperatures and high stability
  • Flap door which can also be used as a work platform
  • Exhaust air outlet in rear wall
  • Solid state relays provide for low-noise operation
  • Compact dimensions and light weight
  • R7 Controller mounted under the door to save space
  • Defined application within the constraints of the operating instructions

Additional Equipment

  • Chimney, chimney with fan or catalytic converter (not for L 1)
  • Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
  • Protective gas connection to purge with non-flammable protective or reaction gases
  • Manual gas supply system
