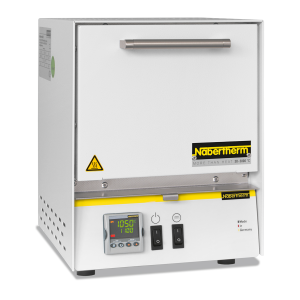

Compact Muffle Furnace LE 2/11 with R7 Controller 120V
List Price: $2,138.00
Clarkson Price: $1,817.30
You Save: $320.70 (15 %)
Clarkson Catalog Number: LE021K17N-120
Manufacturer: Nabertherm
Supplier Catalog Number: LE021K17N-120
Naberthern ships to the East Coast for $50, Mid-West $70, West Coast $90
|

Nabertherm LE012K17N Series 2L Nabertherm LE012K17N Series 1L Nabertherm LE061K17N Series 6L |
|
Clarkson LE021K17N-120Compact Muffle Furnace LE 2/11 with R7 Controller 120V Nabertherm LE021K17N-120 / / Fisher 50-135-0438 / VWR 75993-656
Catalog Numbers |
Model |
Electrical |
Volume |
Interior Dimension D x H x W |
Exterior Dimension D xH xW |
Weight |
LE012K17N-120 |
LE 1/11 |
120V, 1.5KW, 1-phase |
1L |
115 x110 x90 mm |
280 x430 x290 mm |
10 kg |
LE012K17N-240 |
LE 1/11 |
240V, 1.5KW, 1-phase |
1L |
115 x 110 x90 mm |
280 x430 x290 mm |
10 kg |
LE021K17N-120 * |
LE 2/11 |
120V, 1.8KW, 1-phase |
2L |
180 x110 x110 mm |
385 x430 x330 mm |
10 kg |
LE021K17N-240 |
LE 2/11 |
240V, 1.8KW, 1-phase |
2L |
180 x110 x110 mm |
385 x430 x330 mm |
10 kg |
LE061K17N-120 |
LE 6/11 |
120V, 1.8KW, 1-phase |
6L |
200 x170 x170 mm |
435 x490 x390 mm |
18 kg |
LE061K17N-240 |
LE 6/11 |
240V, 1.8KW, 1-phase |
6L |
200 x170 x170 mm |
435 x490 x390 mm |
18 kg |
LE141K17N-120 |
LE 14/11 |
120V, 2.9KW, 2-phase |
14L |
300 x220 x220 mm |
535 x540 x440 mm |
25 kg |
LE141K17N-240 |
LE 14/11 |
240V, 2.9KW, 1-phase |
14L |
300 x220 x220 mm |
535 x540 x440 mm |
25 kg |
Nabertherm furnaces are available for mains voltages from 110V thru 240V at 50 Hz or 60 Hz.
With their unbeatable price/performance ratio, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.
- Tmax 1100 °C, working temperature 1050 °C
- Heating from two sides from heating elements in quartz glass tubes
- Maintenance-friendly replacement of heating elements and insulation
- Insulation made of non-classified fiber material
- Housing made of sheets of textured stainless steel
- Dual shell housing for low external temperatures and high stability
- Flap door which can also be used as a work platform
- Exhaust air outlet in rear wall
- Solid state relays provide for low-noise operation
- Compact dimensions and light weight
- R7 Controller mounted under the door to save space
- Defined application within the constraints of the operating instructions
Additional Equipment
- Chimney, chimney with fan or catalytic converter (not for L 1)
- Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
- Protective gas connection to purge with non-flammable protective or reaction gases
- Manual gas supply system
|
