Water Qualitiy Colorimeter Orbeco Hellige MC500
List Price: $1,025.00
Clarkson Price: $922.50
You Save: $102.50 (10 %)
Clarkson Catalog Number: MC500-10
Manufacturer: Orbeco
Manufacturer Catalog Number: MC500-10
|
|
Clarkson MC500-10
Handheld Water Qualitiy Colorimeter Orbeco Hellige MC500
Orbeco MC500-10
Features and Benefits:
- INDUSTRY-LEADING 6 WAVELENGTH PHOTODETECTOR ARRAY INCREASES INSTRUMENT CAPABILITIES AND ACCURACY
Wavelengths:
430 nm, 530 nm,560 nm, 580 nm, 610 nm, 660 nm
Optics:
Light-Emitting Diodes and Photosensor-intensifier
featuring automatic wavelength selection
- INTUITIVE AND USER-FRIENDLY USER INTERFACE WITH EXCELLENT DATA HANDLING CAPABILITIES
User- favorites menu – select only the tests you use!
Acid and solvent resistant, touch-sensitive keypad with Audible feedback
1,000 Data set storage capability to assure good record keeping
Customizable with user defined methods:
10 with calibration point input
10 with polynomial input
Available infrared data transfer system to download data to a computer
New Methods Downloads via internet coming soon
User interface in English, Spanish, French, Italian, & German
- COMPACT AND LIGHTWEIGHT FOR PORTABLE PLANT
AND FIELD USAGE
Size:
8.25 x 3.75 x 1.75” (210 x 95 x 45 mm)
Weight:
19 Ounces (550 g) - Approximate
Power supply:
4 AA Batteries with auto-off function
Waterproof and Durable for years of use
Description:
Introducing the MC500™ Multi-Parameter Water Analysis Colorimeter from Orbeco-Hellige.
This versatile new instrument tests for a wide range of water quality parameters from Alkalinity to Zinc and is perfect for use in either the field or laboratory.
Using both Orbeco’s Powder Pack™ and stable tablet reagents, the MC500 features an industry-leading 6 LED photodetector array which supports a large
number of pre-programmed methods (see back) and up to 10 user defined methods.
Up to 1,000 Data sets can be stored in the instrument’s internal memory and transferred to computer using a water resistant infrared data port.

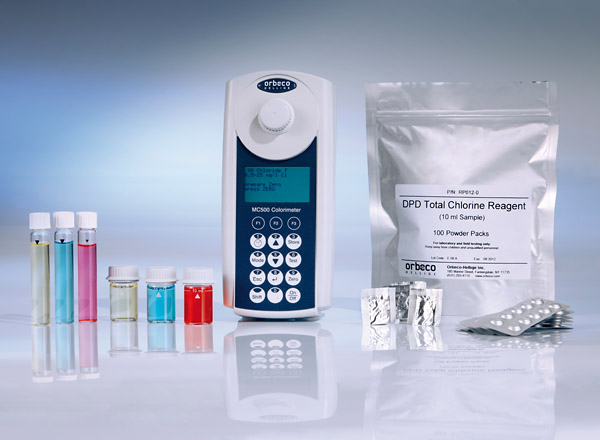

The instrument comes with the MC500 Colorimeter, case, 24 mm sample cells, 10 mm sample cells, 16 mm tube adapter (for COD), batteries and operators manual.
Parameters and Testing Ranges:
| Parameter
|
Method
|
Range
|
# of Tests
|
Replacement Reagents
|
| Acid Demand, pH 4.3 p.p.m. Reagents
|
Acid/Indicator
|
0.1-4 mmol/L
|
100
|
RT321-0
|
| Alkalinity-m (total)
|
Acid/Indicator
|
5-300
|
100
|
RT321-0
|
| Alkalinity-p
|
Acid/Indicator
|
5-500
|
100
|
RT323-0
|
| Aluminum
|
Eriochrome cyanide R (Tablet)
|
0.01-0.3
|
100
|
RS5460
|
| Aluminum
|
Eriochrome cyanide R (Powder)
|
0.01-0.25
|
100
|
RS5000
|
| Ammonium
|
Indophenole
|
0.02-1
|
100
|
RS5540
|
| Ammonium
|
Salicylate
|
0.01-0.8
|
100
|
RS5500
|
| Ammonium, LR
|
Salicylate
|
0.02-2.25
|
50
|
RS5600
|
| Ammonium, HR
|
Salicylate
|
1-50
|
50
|
RS5650
|
| PHMB (Biguanide)
|
Buffer/Indicator
|
2-60
|
100
|
RT610-0
|
| Boron
|
Azomethine
|
0.1-2
|
100
|
RS5050
|
| Bromine
|
DPD
|
0.05-13
|
100
|
RT106-0
|
| Calcium Hardness
|
Murexide
|
50-900
|
100
|
RT565-0
|
| Calcium Hardness
|
Murexide
|
0-500
|
100
|
RT776-0
|
| Chloramines (Mono)
|
Indophenol
|
0.04-4.50
|
100
|
RS5800
|
| Chloride
|
Silver nitrate/Turbidity
|
0.5-25
|
100
|
RS5910
|
| Chlorine
|
DPD
|
0.01-6
|
100
|
RS1060
|
| Chlorine
|
DPD
|
0.02-4
|
100
|
RS1056
|
| Chlorine, HR
|
Potassium Iodide/Acid
|
5-200
|
100
|
RS5480
|
| Chlorine, Free
|
DPD
|
0.02-2
|
100
|
RP101-0
|
| Chlorine, Total
|
DPD
|
0.02-2
|
100
|
RP012-0
|
| Chlorine, UHR
|
Potassium Iodide
|
0.02-16% NaHCl
|
100
|
RS5480
|
| Chlorine Dioxide
|
DPD
|
0.05-11
|
100
|
RS2170
|
| COD, LR
|
Dichromate/H2SO4
|
0-150
|
25 or 150
|
TT20721 or TT20725
|
| COD, MR
|
Dichromate/H2SO4
|
0-1500
|
25 or 150
|
TT20722 or TT20726
|
| COD, HR
|
Dichromate/H2SO4
|
0-15000
|
25 or 150
|
TT20723 or TT20727
|
| Color
|
APHA, Pt. Co.
|
0-500
|
|
Direct Reading
|
| Copper
|
Biquinoline
|
0.05-5
|
100
|
RS3550
|
| Copper, Free
|
Bicichoninate
|
0.05-5
|
100
|
RP030-0
|
| Cyanide
|
Pyridine-barbituric acid
|
0.01-0.5
|
260
|
L2418875
|
| Cyanuric Acid
|
Melamine
|
2-160
|
100
|
RT132-0
|
| DEHA
|
PPST (Tablet)
|
20-500 μg/L
|
100
|
RS3220
|
| DEHA
|
PPST (Powder)
|
20-500 μg/L
|
100
|
RS6000
|
| Fluoride
|
SPANDS
|
0.05-2
|
~125
|
L467481
|
| Hardness, Total
|
Metallphthalein
|
2-250
|
100
|
RT566-0
|
| Hardness, Total HR
|
Metallphthalein
|
20-500
|
100
|
RT566-0
|
| Hydrazine
|
Dimethylaminobenzaldehyde
|
0.05-0.5
|
100
|
RS2910
|
| Hydrazine
|
Dimethylaminobenzaldehyde
|
0.01-0.6
|
~100
|
L531200
|
| Hydrazine
|
PDMAB
|
0.01-0.7
|
30
|
L380470
|
| Hydrogen Peroxide
|
DPD/Catalyst
|
0.03-3
|
100
|
RT238-0
|
| Iodine
|
DPD
|
0.03-3
|
100
|
RT106-0
|
| Iron (II, III) Soluble
|
PPST
|
0.02-1
|
100
|
RS5370
|
| Iron (II, III) Soluble
|
1, 10-Phenanthroline
|
0.02-3
|
100
|
RP056-0
|
| Iron (Total)
|
TPTZ
|
0-.02-1.8
|
100
|
RP055-0
|
| Manganese
|
Formaldoxime
|
0.2-4
|
100
|
RS6080
|
| Manganese, LR
|
PAN
|
0.01-0.7
|
50
|
RS5090
|
| Manganese, HR
|
Periodate Oxidation
|
0.1-18
|
100
|
RS6500
|
| Molybdate
|
Thioglycolate
|
1-50
|
100
|
RS3060
|
| Molybdate, HR
|
Mercaptoacetic acid
|
0.5-66
|
100
|
RS5300
|
| Nitrate
|
Chromotropic acid
|
1-30
|
50
|
RS5580
|
| Nitrite
|
N(1-Naphthyl) ethylenediamine
|
0.01-0.5
|
100
|
RT231-0
|
| Nitrite, LR
|
Diazotization
|
0.01-0.3
|
100
|
RP098-0
|
| Nitrogen, Total LR
|
Persulfate Digestion method
|
0.5-25
|
50
|
RS5550
|
| Nitrogen, Total HR
|
Persulfate Digestion method
|
5-150
|
50
|
RS5560
|
| Oxygen, active
|
DPD
|
0.1-10
|
100
|
RT122-0
|
| Oxygen, dissolved
|
Rhodazine DTM
|
10-800 μg/L
|
30
|
L380450
|
| Ozone
|
DPD/Glycine
|
0.02-2
|
100
|
RS5555
|
| Phosphate, ortho LR
|
Phosphormolybdic blue/ Ascorbic acid
|
0.05-4
|
100
|
RS3040
|
| Phosphate, ortho HR
|
Vanado molybdate
|
5-80
|
100
|
RS5810
|
| Phosphate, ortho
|
Ascorbic acid
|
0.06-2.5
|
100
|
RP155-0
|
| Phosphate, ortho
|
Ascorbic acid
|
0.06-5
|
50
|
RS5200
|
| Phosphate, acid-hydrolyzable
|
Acid digestion
|
0.02-1.6
|
50
|
RS5250
|
| Phosphate, Total
|
Acid persulfate digestion
|
0.02-1.1
|
50
|
RS5210
|
| Phosphate 1, ortho
|
Vanado molybdate
|
5-40
|
30
|
L380460
|
| Phosphate 2, ortho
|
Stannous chloride
|
0.05-5
|
30
|
L380480
|
| Phosphonates
|
UV Oxidation
|
0-125
|
100
|
RS5220
|
| pH-value
|
Bromocresol purple
|
5.2-6.8
|
100
|
RT570-0
|
| pH-value
|
Phenol Red
|
6.5-8.4
|
100
|
RT177-0
|
| pH-value
|
Phenol Red
|
6.5-8.4
|
15 mL
|
L471040
|
| pH-value
|
Thymol blue
|
8.0-9.6
|
100
|
RT571-0
|
| Potassium
|
Tetraphenylborate (Turbidity)
|
0.7-12
|
100
|
RT567-0
|
| Silica
|
Silicomolybdate
|
0.05-4
|
100
|
RS3130
|
| Silica, LR
|
Heteropoly blue
|
0.1-1.6
|
100
|
RS5690
|
| Silica, HR
|
Silicomolybdate
|
1-90
|
100
|
RS5700
|
| Sulfate
|
Barium sulfate (Turbidity)
|
5-100
|
100
|
RT545-0
|
| Sulfate
|
Barium sulfate (Turbidity)
|
5-100
|
100
|
RP216-0
|
| Sulfide
|
DPD/Catalyst
|
0.04-0.5
|
100
|
RS2960
|
| Sulfite
|
DTNB
|
0.1-5
|
100
|
RT802-0
|
| Suspended Solids
|
Turbidity / Attenuated Radiation
|
0-750
|
|
Direct Reading
|
| Turbidity
|
Attenuated Radiation
|
0-1000
|
|
Direct Reading
|
| Urea
|
Indophenol / Urease
|
0.1-2.5
|
100
|
RS9300
|
| Zinc
|
Zincon
|
0.02-1.0
|
100
|
RS2620
|
The MC500™ Multi-Parameter Colorimeter from Orbeco-Hellige is a versatile new instrument that tests for a wide range of water quality parameters and is perfect for use in either the field or laboratory.
Using Orbeco-Hellige’s “Open Reagent System” (which uses Powder Pack™, stable tablets and liquid reagents) the MC500 features an industry-leading 6 LED photo detector array and supports 70 pre-programmed methods (from Alkalinity through Zinc) and 20 user defined methods.
Up to 1,000 data sets can be stored in the instrument’s internal memory to assure good record keeping, and can be transferred to a computer or printer with the IRiM.
The MC500 Colorimeter comes with: 24 mm sample cells, 10 mm sample cells, 16 mm tube adapter, batteries, operator’s manual and carrying case.
Ordering Information
|
MC500-10 MC500, Multi-Parameter Colorimeter
|
 MC500-60 >>
IRiM
Infrared Data Transfer Module
|
 L215640 >>
Verification Standard Kit, MC500
(Zero/430/530/560/580/610/660 nm)
|
L197610 Multi Vial, Plastic , 10 mm with lid, 12 pack
|
L197615 Multi Vial, Plastic, 10 mm with lid, 5 pack
|
L197620 Sample Cell, Glass , 24 mm with lid, 12 pack
|
L197665 Sample Cell, Glass , 16 mm with lid, 10 pack
|
| L197635 Cleaning Cloth For Sample Cells
|
Technical Specifications
|
Display
|
Graphic-display
|
|
Interfaces
|
Infrared interface for test data transfer1 , RJ45 socket for Internet updates2
|
|
Optics
|
Light-emitting diodes and photosensor-intensifier featuring automatic wave length selection.Wavelength range:
1 = 530 nm IF Δ λ = 5 nm
2 = 560 nm IF Δ λ = 5 nm
3 = 610 nm IF Δ λ = 6 nm
4 = 430 nm IF Δ λ = 5 nm
5 = 580 nm IF Δ λ = 5 nm
6 = 660 nm IF Δ λ = 5 nm
IF = interference filter
|
|
Wavelength Accuracy
|
± 1 nm
|
|
Photometric Accuracy*
|
2% FS (T = 68°F- 77°F)
|
|
Colorimetric Resolution
|
0.005 A
|
|
Operation
|
Acid and solvent resistant, touch-sensitive keypad with audible feedback via integratedbeeper
|
|
Power Supply
|
4 batteries (Mignon AA/LR6);Operation time: approx. 26 hours continuous operation or 3500 tests
|
|
Auto-Off
|
approx. 20 minutes after last keypress withaudible signal
|
|
Dimensions
(L x W x H)
|
approx. 8.27 x 3.7 x 1.8 inches (unit)approx. 15.5x 11.6 x 4.2 inches (case)
|
|
Weight
|
(unit) approx. 1 lb (450 g)
|
|
Operating Conditions
|
41 – 104°F
30 – 90% relative humiditynon condensing
|
|
Language Selection
|
English, German, French, Spanish, Italian,Portugese, and Polish
|
|
Memory Capacity
|
approx. 1000 data sets
|
|
Certification
|
CE
|
1 optional available: IRiM (Infrared Data Transfer Module)
2 optional available: connection cable with integrated electronics
* tested with standard solutions
|
|
|
