FLASH POINT TESTER CLEVELAND OPEN CUP COC ASTM D92 115V
List Price: $1,552.00
Clarkson Price: $1,319.20
You Save: $232.80 (15 %)
Clarkson Catalog Number: P2109
Manufacturer: Koehler Instrument
Manufacturer Catalog Number: K13900
|
|
Clarkson P2109
Cleveland Open-Cup Flash Tester ASTM D92
Koehler K13900
| K13900 Cleveland Open-Cup Flash Tester
|
|
Test Method
For flash and fire points of all petroleum products, except fuel oils and those having an open cup flash below 79°C (175°F).
Features and Benefits
• Conforms to ASTM D92 and related specifications
• For flash points above 79°C (175°F)
|
|
|

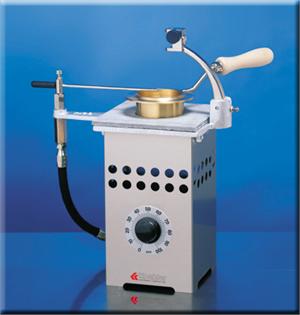

K13900 Cleveland Open-Cup Flash Tester
Determines flash and fire points by the Cleveland Open-Cup method. Consists of test flame applicator, brass test cup, thermometer support, heating plate and electric heater. Applicator is precisely aligned per specifications and pivots for test flame application at specified temperature intervals. Hinged thermometer support raises to facilitate placement and removal of test cup. Adjust flame size using built-in needle valve and comparison bead.
Equipped with a 1000W nickel-chromium heater with stepless variable heat control for accurate repeat setting of temperature rate of rise per specifications.
Heater unit is enclosed in a stainless steel housing with cooling vents. Test flame applicator and thermometer support are constructed of machined nickel plated brass.
Specifications
Conforms to: ASTM D92, D6074, D6158; AASHTO T48; ANS Z-11.6; IP 36; ISO 2592; DIN 51376; FTM 791-1103, FTM 141-4294
Electrical Requirements
115V 50/60Hz, Single Phase, 6.5A
220-240V 50/60Hz, Single Phase, 3.4A
Included Accessories
Brass Test Cup
Dimensions lxwxh,in.(cm)
10x5.5x14 (25x14x36)
Net Weight: 8.5 lbs (3.9kg)
Shipping Information
Shipping Weight: 12 lbs (5.4kg)
Dimensions: 1.5 Cu. ft.
|
|
Ordering Information
|
|
|
Catalog
Number
|
Product Description
|
Electrical Requirements
|
|
K13900 *
|
Electrically Heated Model
|
115V 50/60Hz
|
|
K13990
|
Electrically Heated Model
|
220-240V 50/60Hz
|
|
|
|
Accessories
|
|
|
Catalog
Number
|
Product Description
|
Temperature Range
|
|
250-000-11F
|
ASTM 11F Thermometer
|
20 to 760°F
|
|
250-000-11C
|
ASTM 11C Thermometer
|
-6 to +400°C
|
|
K14000
|
Cleveland Open Flash Cup
Precision machined brass with heat resistant handle
|
|
|
|
Clarkson Price: e-mail sales@clarksonlab.com
Clarkson T6500-011C
Thermometer ASTM 11C
Open Cup Flash Point
-6° to 400°C
Barnstead ERTCO / Thermo Scientific 011C
|
Clarkson Price: e-mail sales@clarksonlab.com
Clarkson T6500-011F
Thermometer ASTM 11F
Open Cup Flash Point
20° to 760°F
Barnstead ERTCO / Thermo Scientific 011F
| |
|
|
