CHLORINE ANALYZER, FREE & TOTAL, pH, ORP & TEMPERATURE 230V
List Price: $2,650.00
Clarkson Price: $2,385.00
You Save: $265.00 (10 %)
Clarkson Catalog Number: PCA330-2
Manufacturer: Hanna Instruments
Manufacturer Catalog Number: PCA330-2
|
|
Clarkson PCA330-2

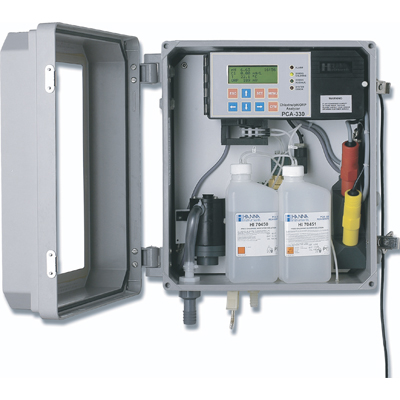

Free & Total Chlorine, pH, ORP and Temperature Analyzer
Hanna Instruments PCA 330-2
Description:
The PCA 330 series of analyzers check pH/ORP and chlorine levels in
applications such as pools and spas, drinking water and influent and effluent
discharge of water to ensure public safety, prevent waste and protect the
environment by reducing over dosage.
Features:
• pH regulation with both ON/OFF and proportional controls
• Separate alarms can be set for pH and chlorine controls
• Parameters can be sent through SMS
• Large graphical display with backlight
• User-friendly interface
• Can store up to 3500 data, that can be displayed or downloaded to a PC
Specifications:
|
Range
|
Free & Total Chlorine
|
0.00 to 5.00 mg/L
|
|
Range
|
pH
|
0.00 to 14.00 pH
|
|
Range
|
Temperature
|
5.0 to 75.0°C
|
|
Range
|
mV
|
0 to 2000 mV
|
|
Resolution
|
Free & Total Chlorine
|
0.01 mg/L
|
|
Resolution
|
pH
|
0.01 pH
|
|
Resolution
|
Temperature
|
0.1°C
|
|
Resolution
|
mV
|
1 mV
|
|
Accuracy
|
Free & Total Chlorine
|
±8% ±0.05 mg/L
|
|
Accuracy
|
pH
|
±0.05 pH
|
|
Accuracy
|
Temperature
|
±0.5°C
|
|
Accuracy
|
mV
|
±1 mV
|
|
Minimum Detectable Level
|
Free & Total Chlorine
|
0.05 mg/L
|
|
Input Impedance
|
|
1012 Ohm
|
|
Calibration
|
Free & Total Chlorine
|
1 point
|
|
Calibration
|
pH
|
1 or 2 point
|
|
Sampling Rate
|
Free & Total Chlorine
|
adjustable from 3 to 90 minutes
|
|
Sampling Rate
|
pH
|
adjustable from 3 to 120 seconds
|
|
Dosage
|
Free & Total Chlorine
|
proportional with 4-20 mA output
|
|
Dosage
|
pH
|
ON/OFF with relay or proportional with 4-
20 mA output
|
|
Delta
|
Free & Total Chlorine
|
selectable from 0.1 to 5 mg/L
|
|
Delta
|
pH
|
selectable from 0.1 to 2 pH (hysteresis
adjustable from 0.05 to 2 pH)
|
|
Recorder Output
|
|
0-10 mV, 0-100 mV, 4-20 mA or 0-20
mA
|
|
Serial Communication
|
|
RS485 port, galvanically isolated
|
|
Baud Rate
|
|
1200, 2400, 4800, 9600 bps
|
|
Data Logging
|
|
up to 3500 data series
|
|
GSM Communication
|
|
2 programmable cellular phone numbers,
alarm & information SMS
using the HI 504900 module (optional)
|
|
Alarm Relay
|
|
SPDT contact with 5A, 230 V resistive load
|
|
Dosing Relay
|
|
SPDT contact with 5A, 230 V resistive load
|
|
System Error
|
|
SPDT contact with 5A, 230 V resistive load
|
|
Inlet Pressure
|
|
0.07 to 4 bar with no external pressure
regulator
(for pressure exceeding 4 bar an external pressure regulator is required)
|
|
Sample Flow
|
|
100 to 300 mL/min
|
|
Sample Temperature
|
|
5 to 40°C (41 to 104°F)
|
|
Sample Inlet Connection
|
|
12 mm (1/2") tubing diameter
|
|
Drain Connection
|
|
10 mm (3/8") bar fitting
|
|
Power Supply
|
|
115 Vac or 230 Vac; 50/60 Hz; 20 VA
(See Chart)
|
|
Enclosure
|
|
NEMA-4X standard, molded fiberglass
polyster
with transparent Lexan window
|
|
Dimensions
|
|
318 x 267 x 159 mm (12.5 x 10.5 x
6.25")
|
|
Weight
|
|
5 kg (11 lb.) without reagents
|
Accessories:
| Electrodes |
|
|
Amplified pH Electrode with Matching Pin and Pt100
|
|
|
Amplified ORP Electrode for the PCA 330
|
|
|
|
|
Free chlorine reagent kit
|
|
|
Total chlorine reagent kit
|
|
|
|
|
PCA tubing kit, pressure regulator to drain
|
|
|
PCA peristaltic pump tubing kit
|
|
|
PCA peristaltic pump tubing kit
|
|
|
Reagent bottle tubing kit
|
|
|
PCA Y strainer and tubing to measuring cell
|
|
|
PCA tubing kit, bottle to pump
|
|
|
PCA tubing kit, pump to Y strainer
|
|
|
Reagents set for PCA series
|
|
|
Reagents set for PCA 310, PCA 320 and PCA 330
|
|
|
5 µm and 50 µm input filters for PCA series
|
|
|
PCA complete tubing kit
|
|
|
PCA complete tubing kit
|
|
|
Magnetic stirrer motor for PCA series
|
|
|
Magnetic bar for PCA series
|
|
|
PCA Spare Parts
|
|
|
PCA electrovalve, 60 Hz
|
|
|
PCA electrovalve, 50 Hz
|
|
|
PCA calibration port cap
|
|
|
GSM Module
|
Order Information:
The PCA 330 series is supplied with instructions
Manual: (Download)
Literature: (Download)
|
|
|
