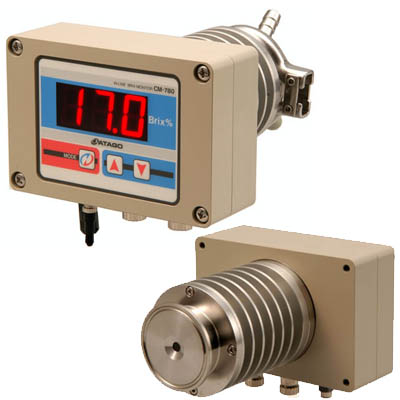

REFRACTOMETER IN-LINE BRIX 0-78% CM-780

This refractometer is a compact in-line model which can be incorporated in piping of manufacturing plants, or a liquid mixing apparatus, or a washing apparatus to continuously measure concentration ( Sugar content: Brix ) and is suitable for use in control of mixing or concentrating processes at food manufacturing plants, in control of fermentation equipment ( alcohol, soysouce, etc. ) , in control of concentration of water-based or alkali-based detergent, etc.



Model	CM-780	Cat.No.	3546
Measurement Scale	Brix ( Automatic Temperature Compensation according to the sample liquid )	Measurement Range	Brix 0.0 to 78.0%
Minimum Indication	Brix 0.1%	Measurement Accuracy	Brix ±0.2%
Measurement Temperature	5 to 100°C ( Automatic Temperature Compensation )	Ambient Temperature	5 to 45°C
Output	(1) Recorder output : DC 4 to 20mA (2) RS-232C output	Materials in contact with the Solution	Prism : Artificial Sapphire Prism stage : SUS316
Power Supply	DC24V	Power Consumption	10VA
International Protection Class	IP64 Dust-tight and Protected against splashing water.	Dimensions & Weight	15×17×10cm, 1.7kg (Main Unit only)
Accessory	Power input cable ( 1m )	Optional	AC adapter AD-24 ( 100 to 120V ) : Cat.No.3568 AC adapter AD-25 ( 220 to 240V ) : Cat.No.3569
