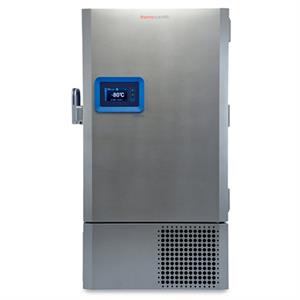

TSX -86C Ultra-Low Freezer 949L 208-230V
List Price: $27,667.00
Clarkson Price: $22,963.61
You Save: $4,703.39 (17 %)
Clarkson Catalog Number: TSX70086D
Manufacturer: Thermo Scientific
Supplier Catalog Number: TSX70086D
Manufacturer Direct Shipment
|
 Thermo Fisher TSX -86C Ultra-Low Freezer 33.5 cu. ft. (949L) Thermo Fisher TSX -86C Ultra-Low Freezer 19.4 cu. ft. (549L) Thermo Fisher TSX -86C Ultra-Low Freezer 24.1 cu. ft. (682L) Thermo Fisher TSX -86C Ultra-Low Freezer 28.8 cu. ft. (816L) |
|
Clarkson TSX70086D TSX -86C Ultra-Low Freezer 949L 208-230V Thermo Fisher / Thermo Scientific TSX70086D / Fisher TSX70086D / VWR CA76019-464 TSX Series -86°C Upright Ultra-Low Freezers
Catalog
Numbers |
Capacity |
Interior Dimensions
H x W x D in (cm) |
Exterior Dimensions
H x W x D in (cm) |
Electrical
Requirements |
| cu. ft.(liters) |
2" cryobox |
| TSX40086A |
19.4 (549) |
400 |
51.2 x 23.1 x 28.3
(130.1 x 58.8 x 71.9) |
37.6 x 28.3 x 78
(95.5 x 71.9 x 198.1) |
115V / 60Hz
(NEMA 5-15) |
| TSX40086D |
19.4 (549) |
400 |
51.2 x 23.1 x 28.3
(130.1 x 58.8 x 71.9) |
37.6 x 28.3 x 78
(95.5 x 71.9 x 198.1) |
208-230V / 60Hz
(NEMA 6-15) |
| TSX40086V |
19.4 (549) |
400 |
51.2 x 23.1 x 28.3
(130.1 x 58.8 x 71.9) |
37.6 x 28.3 x 78
(95.5 x 71.9 x 198.1) |
230V / 50Hz
(European Plug) |
| TSX50086A |
24.1 (682) |
500 |
51.2 x 28.8 x 28.3
(130.1 x 73.0 x 71.9) |
37.6 x 34.0 x 78
(95.5 x 86.4 x 198.1) |
115V / 60Hz
(NEMA 5-15) |
| TSX50086D |
24.1 (682) |
500 |
51.2 x 28.8 x 28.3
(130.1 x 73.0 x 71.9) |
37.6 x 34.0 x 78
(95.5 x 86.4 x 198.1) |
208-230V / 60Hz
(NEMA 6-15) |
| TSX50086V |
24.1 (682) |
500 |
51.2 x 28.8 x 28.3
(130.1 x 73.0 x 71.9) |
37.6 x 34.0 x 78
(95.5 x 86.4 x 198.1) |
230V / 50Hz
(European Plug) |
| TSX60086A |
28.8 (816) |
600 |
51.2 x 34.4 x 28.3
(130.1 x 87.3 x 71.9) |
37.6 x 39.6 x 78
(95.5 x 100.6 x 198.1) |
115V / 60Hz
(NEMA 5-15) |
| TSX60086D |
28.8 (816) |
600 |
51.2 x 34.4 x 28.3
(130.1 x 87.3 x 71.9) |
37.6 x 39.6 x 78
(95.5 x 100.6 x 198.1) |
208-230V / 60Hz
(NEMA 6-15) |
| TSX60086V |
28.8 (816) |
600 |
51.2 x 34.4 x 28.3
(130.1 x 87.3 x 71.9) |
37.6 x 39.6 x 78
(95.5 x 100.6 x 198.1) |
230V / 50Hz
(European Plug) |
| TSX70086A |
33.5 (949) |
700 |
51.2 x 40.0 x 28.3
(130.1 x 101.6 x 71.9) |
37.6 x 45.2 x 78
(95.5 x 114.8 x 198.1) |
115V / 60Hz
(NEMA 5-15) |
| TSX70086D * |
33.5 (949) |
700 |
51.2 x 40.0 x 28.3
(130.1 x 101.6 x 71.9) |
37.6 x 45.2 x 78
(95.5 x 114.8 x 198.1) |
208-230V / 60Hz
(NEMA 6-15) |
| TSX70086V |
33.5 (949) |
700 |
51.2 x 40.0 x 28.3
(130.1 x 101.6 x 71.9) |
37.6 x 45.2 x 78
(95.5 x 114.8 x 198.1) |
230V / 50Hz
(European Plug) |
Description
Performance
- No need to worry about where your samples are stored within the freezer. With peak variation less than 5°C, your samples are protected and safely stored throughout the entire cabinet space. *
- Long warm-up time from -50°C to -80°C: 5.05 hours*
- Quiet enough to reside directly in the laboratory, rather than in the hall. At just 45.5 dBA, the TSX Series’ sound level is comparable to a home refrigerator.*
- V-drive’s adaptive control is designed to detect usage patterns such as door openings when a higher compressor speed is needed and periods of stability where the compressor runs at a lower speed, saving energy without compromising protection
User Friendly
- Newly re-designed touch-screen user interface with easy-to-use: set-up wizard, event log, temperature mapping and data downloads via a built-in USB port
- Eliminate the need for a separate chart recorder with the touch-screen’s datalogging and temperature mapping features, all exportable via a built-in USB port
- Ergonomic design including comfortable door handle, eye-level touch-screen and shelf-level placement that don’t require floor-level loading of racks
- Four capacities (400, 500, 600 and 700 2-inch box) to accommodate a variety of storage needs and lab footprint specifications
- Compatible with most racking systems including a full range of Thermo Scientific™ racks for boxes, microplates, Thermo Scientific™ Matrix™ and Nunc CryoBank™ tubes
- Security features including alarm settings, padlock-compatible doors and optional access card entry
Sustainability
- Natural refrigerants and water-blown foam insulation, making the TSX Series compliant with the U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), the European Union’s F-Gas and other sustainability standards
- Manufactured in an award-winning, zero-waste to landfill facility
- Lower HVAC costs as a result of less heat emission into the environment
Footnotes:
* Typical freezer data based on internal testing with freezer setpoint at -80°C and ambient temperature at 20°C. Performance data varies across freezer size and electrical specifications. |
