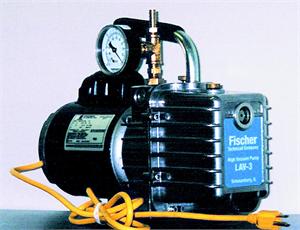

VACUUM PUMP HIGH VACUUM 1 MILLITOR 3CFM W/GAUGE
List Price: $625.00
Clarkson Price: $562.50
You Save: $62.50 (10%)
Clarkson Catalog Number: V8069-G
Manufacturer: Fischer Technical
Manufacturer Catalog Number: LAV-3/G
|
|
Specifications:
Free Air Displacement: 85 liters per minute (3 cubic Feet per Minute)
Ultimate Vacuum: 1-micron laboratory conditions/better than 25 microns field conditions
Pump Speed: 1725 RPM
Motor: 1/2 HP 110V, 60Hz
Oil Capacity: 27oz. (785cc)
Operating Temperature: 30º F to 170ºF
Intake Port: 3/8” OD for 3/8” ID Tubing
Weight: 30 lbs.
Dimensions: 11” H x 14” L x 5 ¼” W (27.5cm x 35CM x 12.5cm)
THE LAV-3/G MODEL COMES WITH A 2.5" DIAL, 0 TO -30" Hg BOURDON TYPE STEEL-CASE VACUUM GAUGE SECURELY MOUNTED TO THE INTAKE.
PRODUCT NUMBER
LAV-3 (3CFM)
LAV-3/220 (3CFM 220 VOLTS)
LAV-3/G (3CFM WITH GAUGE)
VIEW THE HIGH VACUUM PUMP INSTRUCTIONS HERE. |
|
|
