Multi-position Magnetic Stirrer RT 15 Power IKAMAG 115V IKA 2930701

Multi-position Magnetic Stirrer RT 15 Power IKAMAG 115V

IKA 2930701 / IKA 0002930701 / Cole-Parmer EW-04671-65 / Fisher NC0905783 / VWR 33998-396



Catalog Number	Description	Voltage
2930701 *	Multi-position Magnetic Stirrer RT 15 Power	115V
2930700	Multi-position Magnetic Stirrer RT 15 Power	230V

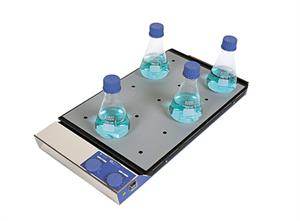

The RT 15 power is a high-performance multi-position magnetic stirrer with 15 stirring positions and
integrated temperature control plate. Precise temperature distribution on the heating plate makes it
possible to perform series experiments.

- Simultaneously operating stirrers
- Absolute consistency over sample conditions for the individual samples



Number of stirring positions	15
Stirring quantity max. per stirring position (H2O)	0.4 l
Stirring position distance	90 mm
Speed deviation of individual stirring positions	5 %
Stirring quantity max. (H2O)	6 l
Motor rating input	21.6 W
Motor rating output	5.4 W
Speed range	0 - 1100 1/min
Stirring bar length max.	30 mm
Heat output	580 W
Heating temperature range	room temp. - 120 °C
Heat control	scale 1-10
Speed control	scale 1-10
Temperature constancy in medium	2 ±K
Temperature medium max. (dep. on vessel)	70 °C
Set-up plate material	silicone
Set-up plate dimensions	270 x 450 mm
Dimensions (W x H x D)	288 x 65 x 552 mm
Weight	6 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 42
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	600 W
