UNICO S1000E Spectrophotometer 230V
List Price: $1,283.00
Clarkson Price: $1,090.55
You Save: $192.45 (15 %)
Clarkson Catalog Number: S4866-S1000E
Manufacturer: UNICO
Supplier Catalog Number: S-1000E
|
|
Clarkson S4866-S1000E

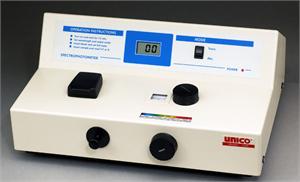

Analog UNICO S1000E Spectrophotometer 230V
UNICO 1000 model S-1000E
|
The UNICO 1000 Precisely designed and ruggedly built, this easy-to-use spectrophotometer is ideal for student use in high schools and colleges. It is suitable for general analysis and experiments such as Beer-Lambert, Absorption Spectrum, Chlorophyll, protein (biuret test) more.
The built- in secondary filters reduce stray light and increase precision. The student-proof positive safety stopper integrated with the wavelength dial prevents damage to the monochromator and grating. Large digital display makes reading much easier and analog interface allows customers to collect data easily with external analog device.
|
|
|
|
Wavelength Range
|
400 -1000 nm
|
|
Bandpass
|
20 nm
|
|
Features
-
Dynamic Range of 400-1000 nm
-
Built-in secondary filters reduce stray light and increase precision.
-
The student-proof positive safety stopper integrated with the wavelength dial prevents damage to the monochromator and grating.
-
Large digital display
-
Analog interface with external analog device.
-
Comes with 1/2 inch round tube holder, 10 mm square cuvette adapter, box of 12 round tubes
-
110 V and 220V switchable
-
Fully packed and ready to use.
|
|
Specifications
|
Model 1000
|
|
Bandpass
|
20 nm
|
|---|
|
Monochromator
|
Single Beam, Grating System 1200 lines/mm
|
|---|
|
Wavelength Range
|
400-1000 nm
|
|---|
|
Wavelength Accuracy
|
±3 nm
|
|---|
|
Wavelength Repeatability
|
±1 nm
|
|---|
|
Stray Light
|
2%T at 400 nm
|
|---|
|
Photometric Range
|
0-100%T
0-1.99A
|
|---|
|
Photometric Accuracy
|
± 2.0T%
|
|---|
|
Data Output
|
Analog Output
|
|---|
|
Light Source
|
Tungsten Halogen Lamp
|
|---|
|
Power Requirements
|
110V/50Hz, 230V/60Hz
switchable
|
|---|
|
Size
|
16 x 12 x 8 inch
(406 x 305 x 203mm)
|
|---|
|
Shipping Size
|
19.5 x 16.1 x 11.3 inch
(496 x 410 x 286 mm)
|
|---|
|
Weight
|
14 lbs (6.3 kg)
|
|---|
|
Shipping Weight
|
16 lbs (7.3 kg)
|
|---|
|
UNICO Model 1000 Series Parts Number
