Raphael Oil/Gas Saltwater Disposal Well Kit
Clarkson Price: Email sales@clarksonlab.net
Clarkson Catalog Number: 875509
Manufacturer: Sper Scientific
Supplier Catalog Number: 875509
|

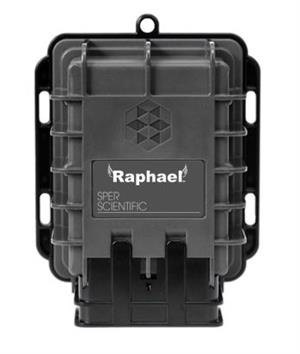

 Sper Scientific Raphael Monitor pH Sensor 874901  Sper Scientific 875001  Conductivity Sensor 873301 |
|
Clarkson 875509
Raphael Oil/Gas Saltwater Disposal Well Kit
Sper Scientific 875509
|
Description
The Saltwater Disposal Well Kit offers comprehensive solutions for remote monitoring of virtually all SWD surface equipment and processes. A flow meter input and current transformer enable operators to assess pump operations and gain insights on volumes unloaded per truckload. Level sensors support tank storage and injection management. Water quality sensors provide data on parameters such as pH, conductivity, and total suspended solids for water fingerprinting.
The Saltwater Disposal Well Kit can be used with any sensor combination. Also, includes 4-Port Serial Cable Splitter - 870121 when you purchase the kit with all sensors.
Features
• Seamless Data Generation
• Modular Applications
• Secure Bi-Directional Communication
• Third-Party Software Integration
Applications
• Reduce Unplanned Downtime
• Water Fingerprinting & Volumetrics
• Facility Management & Automation
• Ticket Audits & Automated Invoicing
ANNUAL SERVICE FEE: 1st Year of Service Included.
Annual service fee includes: Cellular Service Plan, Two-Way Cyber Secure GPSR/GSM/CDMA Data Transmission & Encryption, Embedded GPS for Time/Location Sync, Cloud Data Storage, Web-Based Data Management Software, Provision of SCADA Integration and/or API, Programmable E-mail/ SMS Threshold Alerts, Phone/E-mail Customer Support, Over-the-Air Configuration & Updates ($250.00 value).
Dimensions: 5.2" x 6.5;" x 2.9" (132 mm x 165 mm x 73 mm)
Weight: 25 oz (680 g)
|
Specifications
| AC Current Transformer - 876001 |
| Range |
10 – 1,500 Amp VAC, sine wave, single phase 50/60/400Hz |
| Accuracy |
±1% from 10% – 100% |
| Response Time |
~500 milliseconds from 10% – 90% of amplitude |
| Operating Temperature |
-20°C to 55°C (-4°F to 131°F) |
| Cable Length |
8-ft Cable |
| Conductivity Sensor - 873301 |
| Range |
0 – 2,000,000 μS/cm |
| Operating Temperature |
-10°C to 200°C (14°F to 392°F) |
| Cable Length |
22-ft Cable |
| pH Sensor - 874901 |
| Range |
10 – 1,500 Amp VAC, sine wave, single phase 50/60/400Hz |
| Sensitivity |
± 0.01% |
| Operating Temperature |
-5°C to 70°C (23°F to 158°F) |
| Cable Length |
33-ft Cable |
| Crude, Water and Chemical Radar - 876201 |
| Range |
Up to 10 m (33 ft). Other ranges available upon request. |
| Operating Pressure |
Up to 5 bar (75 psi) |
| Resolution |
3.9 mm (0.15”) for 5 m range;
26 mm (1.06”) for 73 m range |
| Accuracy |
± 0.25% of max range |
| Operating Temperature |
-40°C to 60°C (-40°F to 140°F) |
| Cable Length |
50-ft Cable |
| Total Suspended Solids - 875001 |
| Process Temperature |
-10°C to 110°C (14°F to 230°F) |
| Operating Temperature |
0 – 10 bar (0 – 150 psi) |
| Cable Length |
20-ft Cable |
| Catalog Number |
Description |
| 875509 * |
Raphael Saltwater Disposal Well Kit (with all sensors) |
| 875209 |
Raphael Tank Level - NGL Kit |
| 875109 |
Raphael Tank Level - Crude/Water Kit |
| 875309 |
Raphael Pipeline Monitoring - Oil & Gas Kit |
| 875009 |
Raphael Artificial Lift Kit |
| 875409 |
Raphael Pipeline Monitoring - Water Kit |
